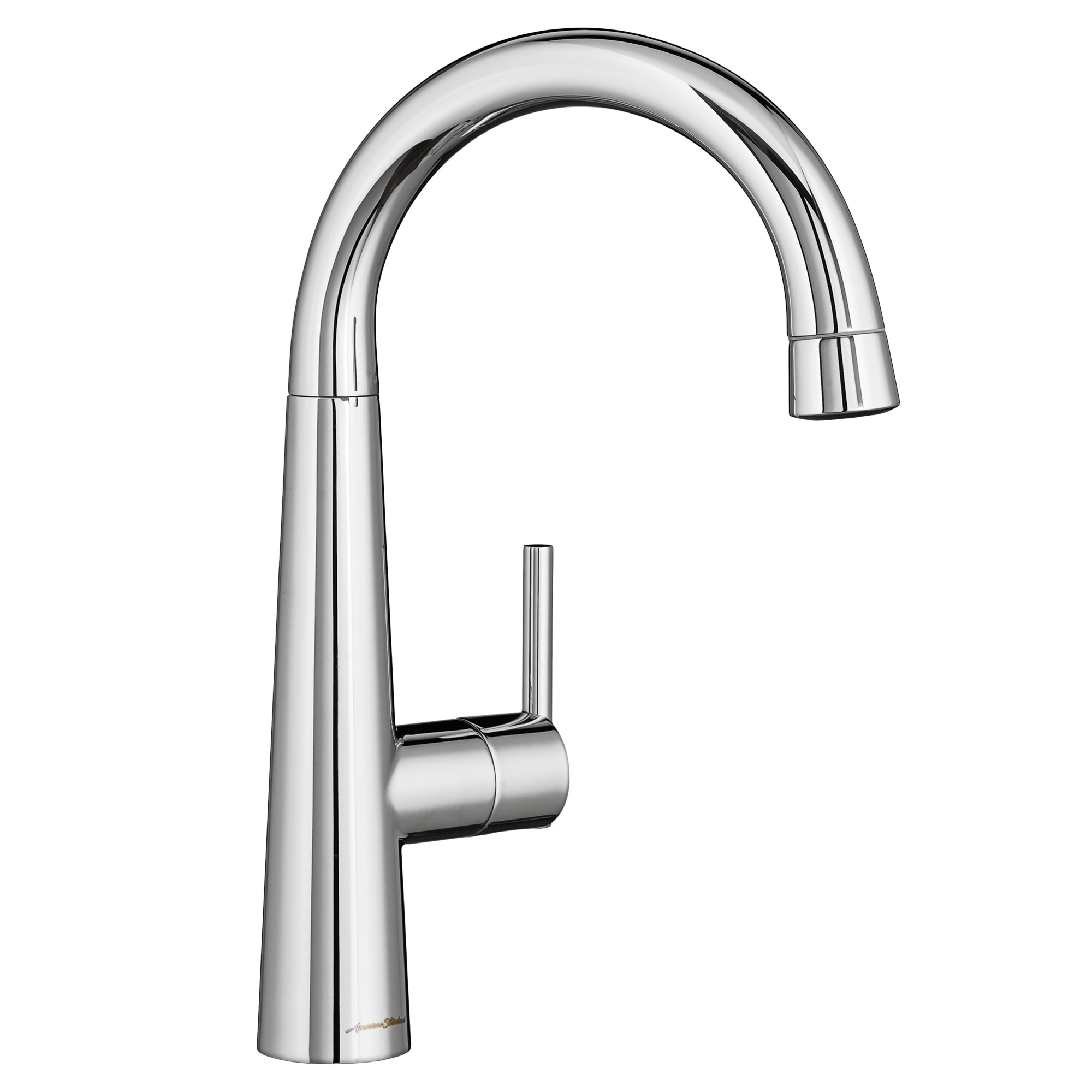

Edgewater® Single-Handle Pull-Down Single Spray Bar Faucet 1.5 gpm/5.7 L/min

List Price:

List Price:

Model: 4932410.002

View in Scene
link
  • Re-Trax spray head retraction system ensures smooth pull-out, operation, and retraction of spray head

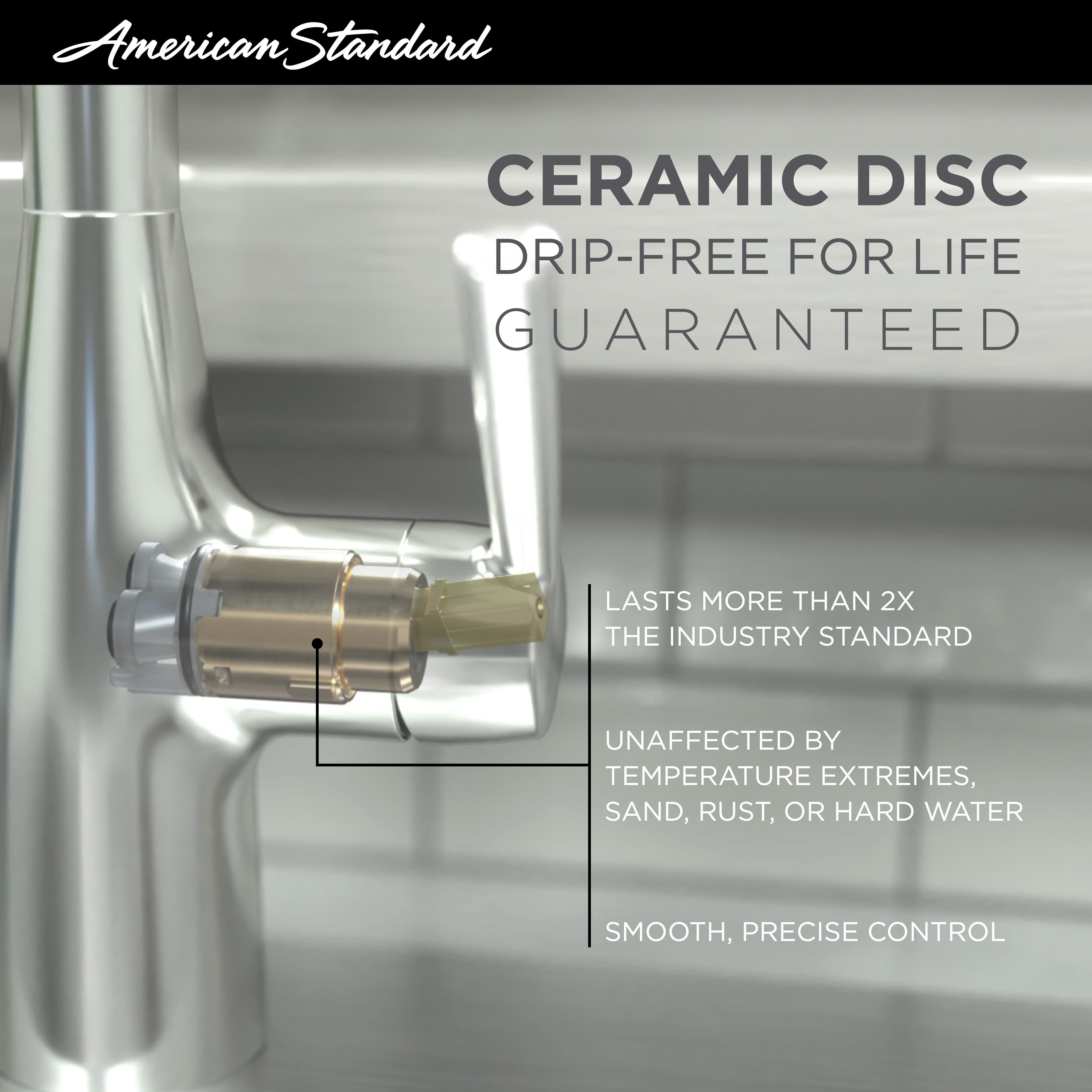

  • Ceramic Disc Valve cartridges assure a lifetime of drip and maintenance free performance
  • Lead free, durable metal construction
  • Integral check valves prevent back flow
  • Single function pull-down spray head
Show More
Finish: Polished Chrome
  • Polished Chrome

Product Description

The Edgewater Pull-Down Bar Faucet from American Standard is a durable bar sink faucet designed with style and functionality in mind. This exceptional bar faucet has a pull-down spout for maximized usability The Re-Trax spray head retraction system ensures the smoothest transition, both when pulling the spray head out, and when it retracts back into place. Ceramic disc valve cartridges offer a lifetime of drip-free and maintenance free performance, for a faucet that just works great.

Edgewater® Single-Handle Pull-Down Single Spray Bar Faucet 1.5 gpm/5.7 L/min

Edgewater

Edgewater® Single-Handle Pull-Down Single Spray Bar Faucet 1.5 gpm/5.7 L/min

Features

  • Re-Trax spray head retraction system ensures smooth pull-out, operation, and retraction of spray head
  • Ceramic Disc Valve cartridges assure a lifetime of drip and maintenance free performance
  • Lead free, durable metal construction
  • Integral check valves prevent back flow
  • Single function pull-down spray head
  • Brass swivel spout
  • Metal body, handle and escutcheon plate
  • 1.5 gpm/5.7 Lpm maximum flow

Innovations

ada

ADA Compliant

Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.

CALGreen

CEC Certified

Meets California Energy Commission requirements.

water efficient

Water Efficient

Specifications

  • Style Specifications
    Color/Finish CHROME
    Faucet Type Pull Down
    Fitting Features Adjustable Angle,Ceramic Disk Valves
    Fitting Handle Type Lever
    Features Not Applicable,Adjustable Angle,Ceramic Disk Valves,Pull Down,Water Efficient
    Fitting Material Zinc
  • Technical Specifications
    Dimensions 355.60,2.85,246.38,119.38
    Fitting Connection Size 9.52
    Fitting Handle Height 6.5
    Fitting Hose Length 24
    Fitting Max Deck Thickness 2.9
    Fitting Spout Reach 7.9
    Fitting Valve Material Ceramic
    Battery Weight Not Applicable
  • Other Specs
    Warranty Limited Lifetime Warranty
    Battery Weight Not Applicable

CAD Files

Parts for this product

Following are the list of products or parts which you can also add to your list along with the product, you can also download the parts diagram by clicking on the Download Repair Parts Diagram button
