Selectronic

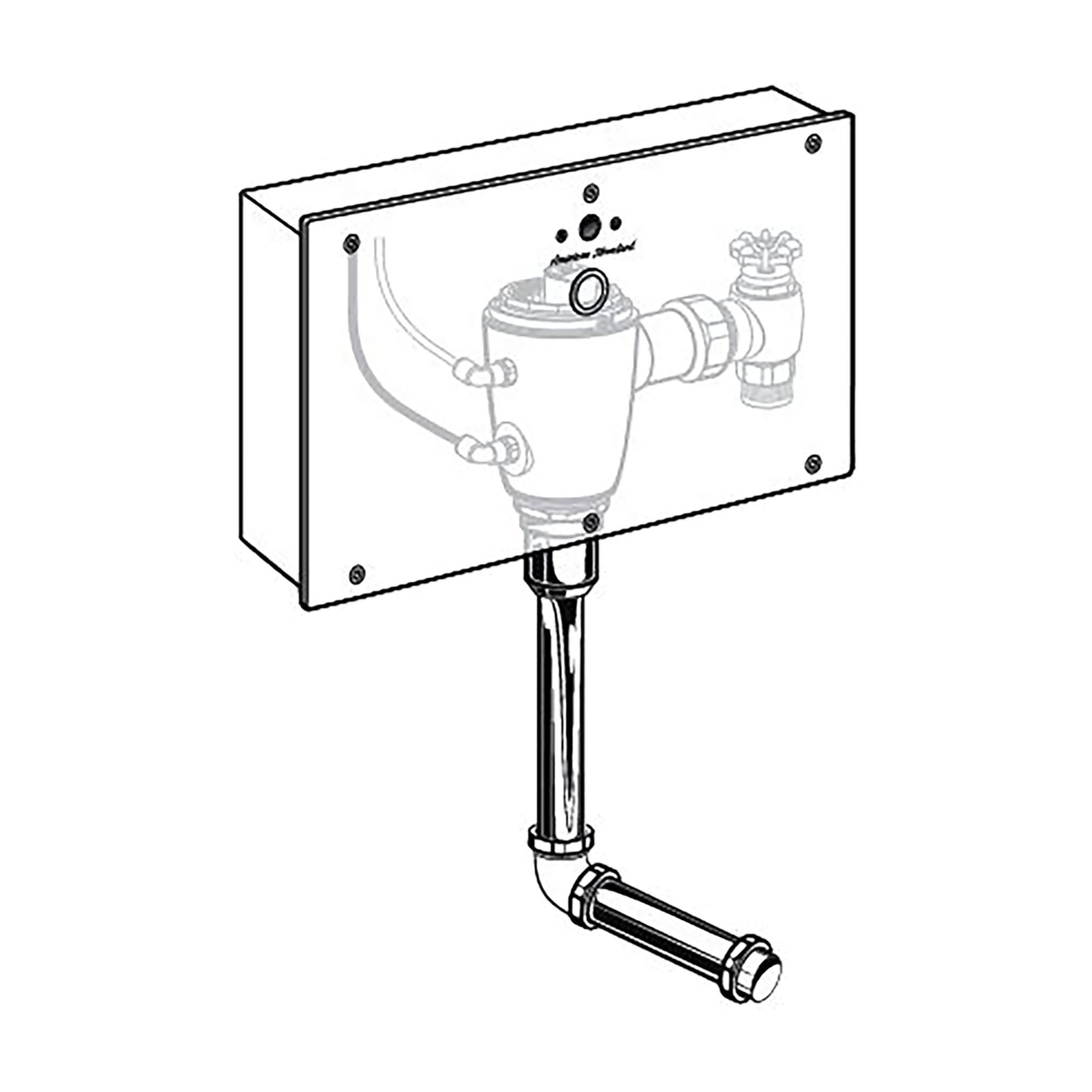

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

List Price:

List Price:

Model: 606B501.007

View in Scene
link
  • For urinals with 3/4" (19 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
Finish: No Finish
  • No Finish
Items REQUIRED for Install

Product Description

• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure• Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenance• Selectronic® Proximity System with universal sensor provides hygienic, "hands free" operation• State-of-the-Art Electronics prevent ghost flushing• Dezincification Resistant semi-red brass alloy• Fully Mechanical Manual Override Button can flush the valve without power• Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset• Adjustable Sanitary Flush cleans the fixture & maintains the trap seal.• Stadium Feature: Valve automatically switches to water savings mode during periods of heavy usage• Chemical Resistant EPDM Seals for extended life• Adjustable tailpiece for rough-in flexibility• Can be installed left or right handed• All exposed parts are chrome-platedSustainability• CALGreen Compliant

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Selectronic

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Features

  • For urinals with 3/4" (19 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 0.125 gpf/0.5 Lpf

Innovations

ada

ADA Compliant

Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.

CALGreen

water efficient

Water Efficient

WaterSense

WaterSense® Certified. Meets all ANSI/ASME low consumption, water conservation requirements.

Specifications

Required Components - Not Included

Selectronic™ PWRX™ Power Kit

Model Number: PK00.WRK EAN : 012611588358

Finish:NO FINISH

Selectronic™ Hard Wired AC Power Kit

Model Number: PK00.HAC EAN : 012611588327

Finish:NO FINISH

Selectronic™ Multi-AC Power Kit

Model Number: PK00.MAC EAN : 012611588334

Finish:NO FINISH

Selectronic™ Plug-In AC Power Kit

Model Number: PK00.PAC EAN : 012611588341

Finish:NO FINISH

Selectronic™ CR-P2 Lithium Power Kit

Model Number: PK00.CRP EAN : 012611589522

Finish:NO FINISH

Show all required components

Parts for this product

Following are the list of products or parts which you can also add to your list along with the product, you can also download the parts diagram by clicking on the Download Repair Parts Diagram button

Selectronic™ Multi-AC Power Kit

Model Number: PK00.MAC EAN : 012611588334

Finish:NO FINISH
