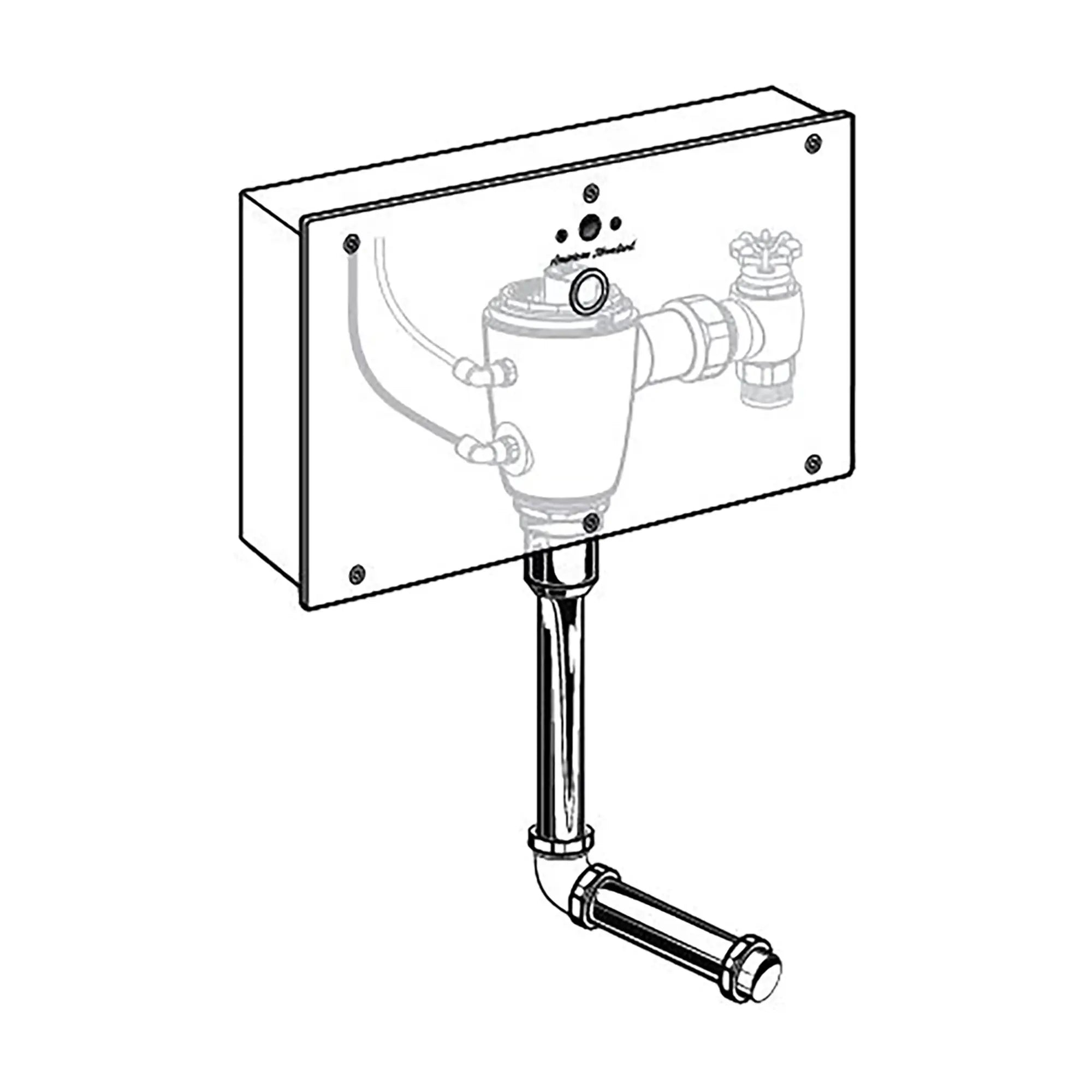

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Model: 606B501.007

Finish: No Finish
View full details
  • For urinals with 3/4" (19 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 0.125 gpf/0.5 Lpf
• Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure• Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenance• Selectronic® Proximity System with universal sensor provides hygienic, "hands free" operation• State-of-the-Art Electronics prevent ghost flushing• Dezincification Resistant semi-red brass alloy• Fully Mechanical Manual Override Button can flush the valve without power• Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset• Adjustable Sanitary Flush cleans the fixture & maintains the trap seal.• Stadium Feature: Valve automatically switches to water savings mode during periods of heavy usage• Chemical Resistant EPDM Seals for extended life• Adjustable tailpiece for rough-in flexibility• Can be installed left or right handed• All exposed parts are chrome-platedSustainability• CALGreen Compliant
Resource
Style Specifications
Features Touchless, Water Efficient
Technical Specifications
Fitting Connection Size 19.05 mm
Fitting Material Brass
Flow Rate 0.125 GPF

This item requires additional components for proper installation.

[606B501.007] Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf - No Finish
Selectronic
Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf

Products required for installation.

These items are necessary for installation.

Selectronic® Hard Wired AC Power Kit // NO FINISH // 251224_PK01.HAC_CDNwebp.webp
Selectronic® Hard Wired AC Power Kit
No Finish
Model: PK01.HAC
[PK00.CRP] Selectronic® CR-P2 Lithium Power Kit - No Finish
Selectronic® CR-P2 Lithium Power Kit
No Finish
Model: PK00.CRP
[PK00.WRK] Selectronic® PWRX Power Kit - No Finish
Selectronic® PWRX Power Kit
No Finish
Model: PK00.WRK
Selectronic® Multi-AC Power Kit // NO FINISH // 251223_PK01.MAC_CDNwebp.webp
Selectronic® Multi-AC Power Kit
No Finish
Model: PK01.MAC
