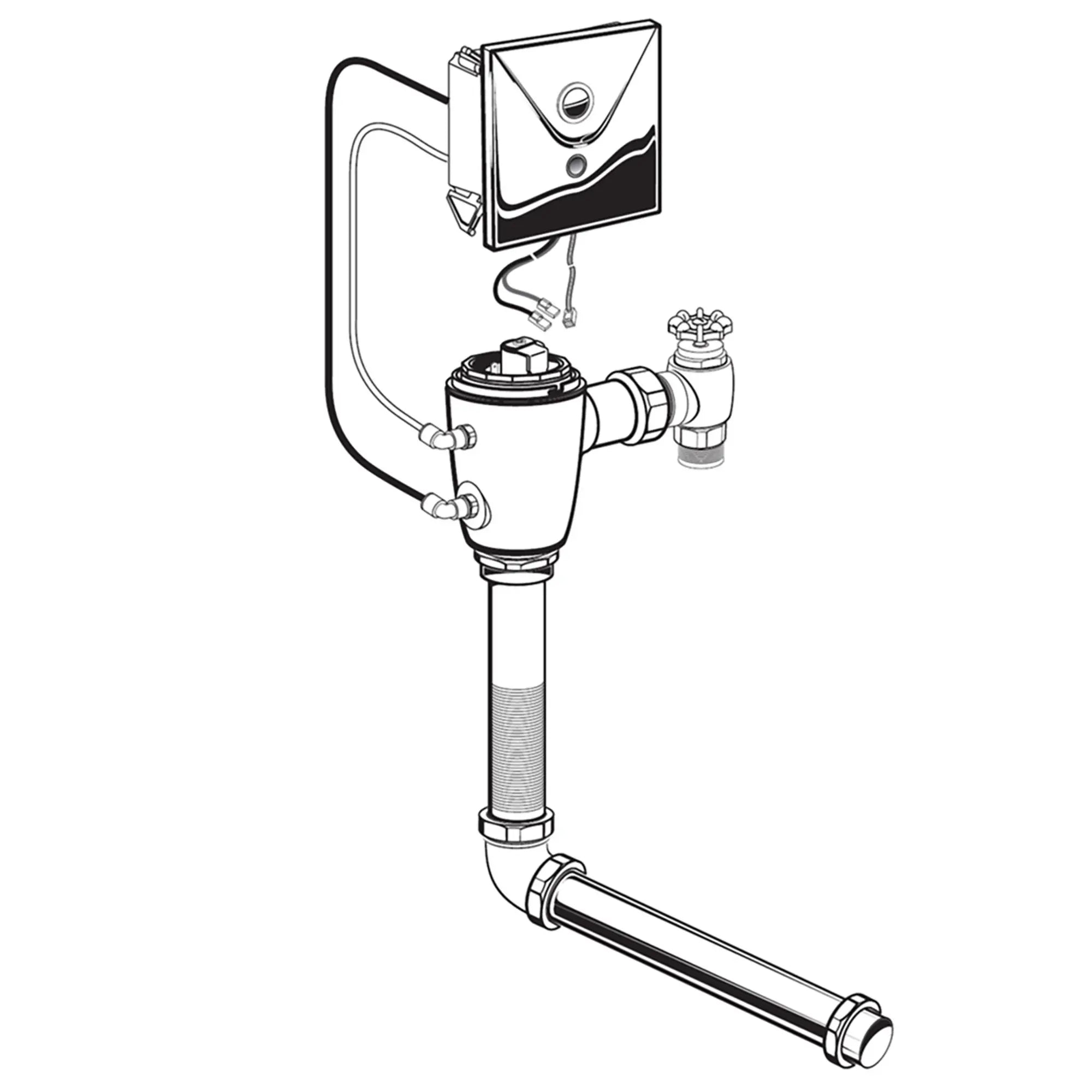

Ultima Selectronic Concealed Toilet Flush Valve, Base Model, Piston-Type, 1.28 gpf/4.8 Lpf

Name: Ultima Selectronic Concealed Toilet Flush Valve, Base Model, Piston-Type, 1.28 gpf/4.8 Lpf
Brand: American Standard
SKU: 606B222.007
Price: 654.0 USD

Model: 606B222.007

Finish: No Finish

View full details

For wall-hung flushometer bowls with 1-1/2" (38mm) back spud
POWER KIT MUST BE PURCHASED SEPARATELY
FOR INSTALLATIONS WITH REAR ACCESS
Includes 6" x 6" (152 x 152 mm) chrome cover plate
Touchless operation limits the spread of germs
Exclusive DynaClean® self-cleaning wiper spring technology
Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
Fully mechanical manual override can operate without power
Proprietary brass alloy resists dezincification
1.28 gpf/4.8 Lpf

Self-Cleaning Piston with integral wiper spring significantly reduces clogging and maintenance• Selectronic® Proximity System with universal sensor provides hygienic, "hands free" operation• State-of-the-Art Electronics prevent ghost flushing• Dezincification Resistant semi-red brass alloy• Fully Mechanical Manual Override Button can flush the valve without power• Fail-Safe: Valve automatically closes upon loss of power or water pressure and does not need to be reset• Adjustable Sanitary Flush cleans the fixture & maintains the trap seal.• Chemical resistant EPDM Seals for extended life• Adjustable tailpiece for rough-in flexibility• Can be installed left or right handed• All exposed parts are chrome-platedSustainability• CALGreen Compliant

Resource

Spec Sheet Installation Guide Repair Parts Diagram
