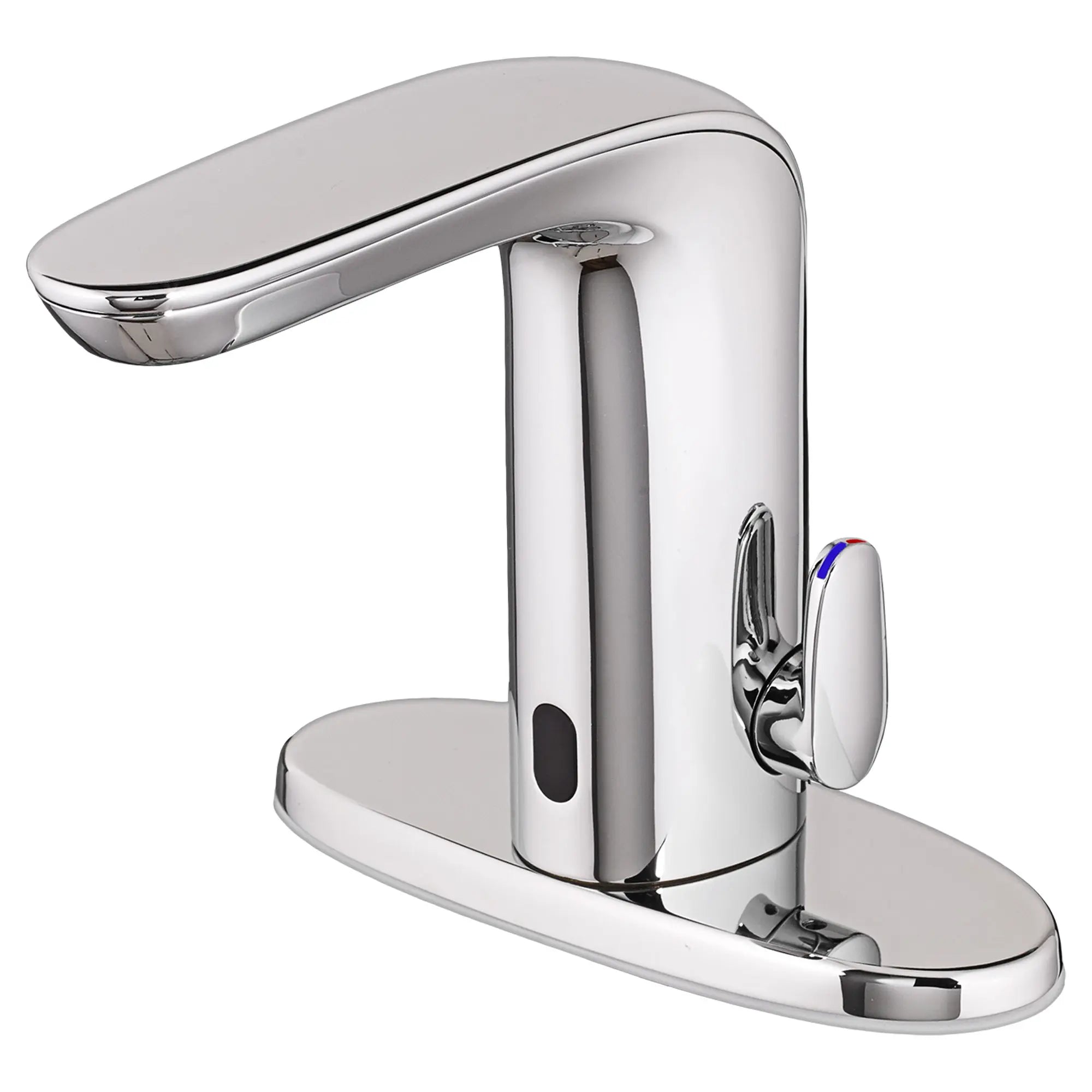

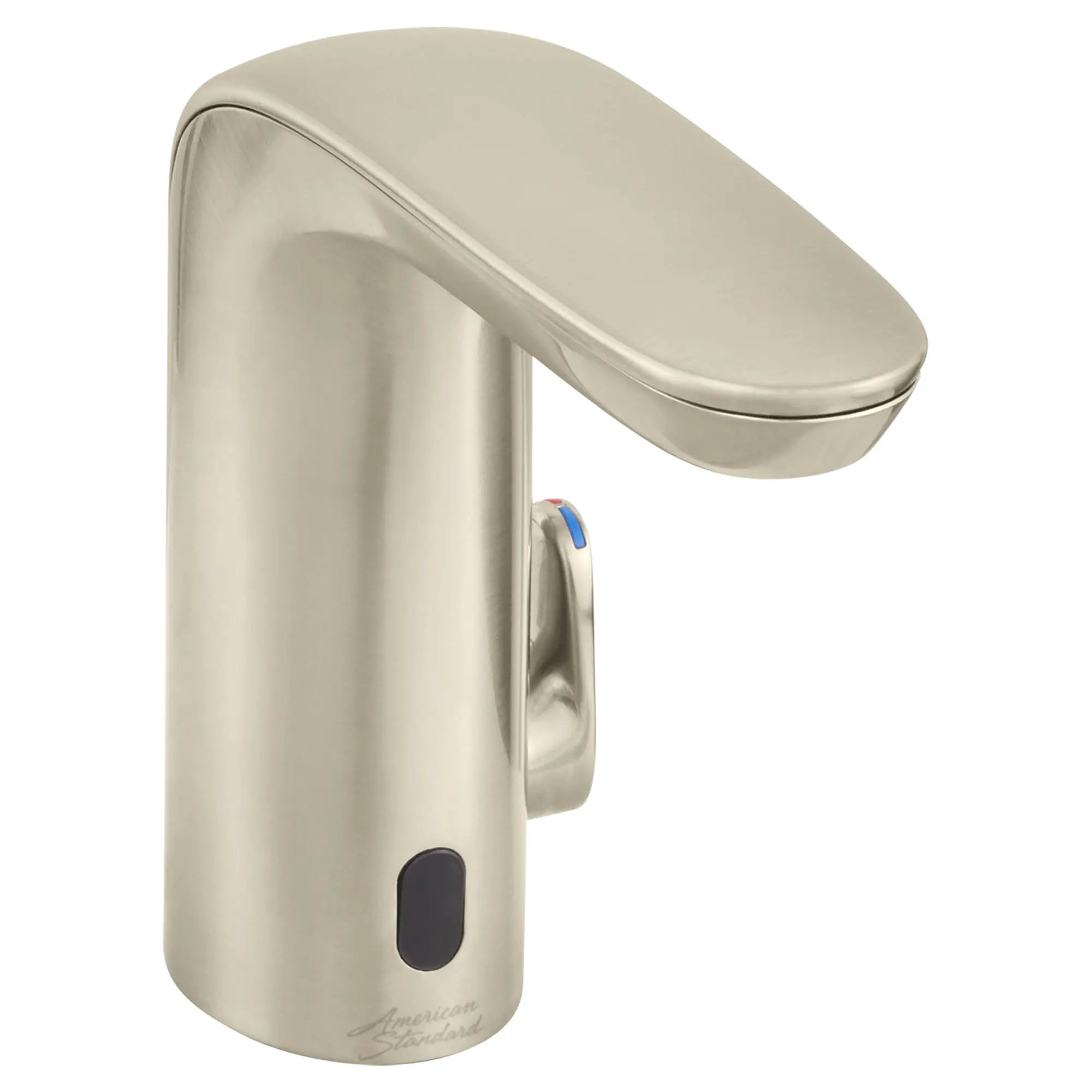

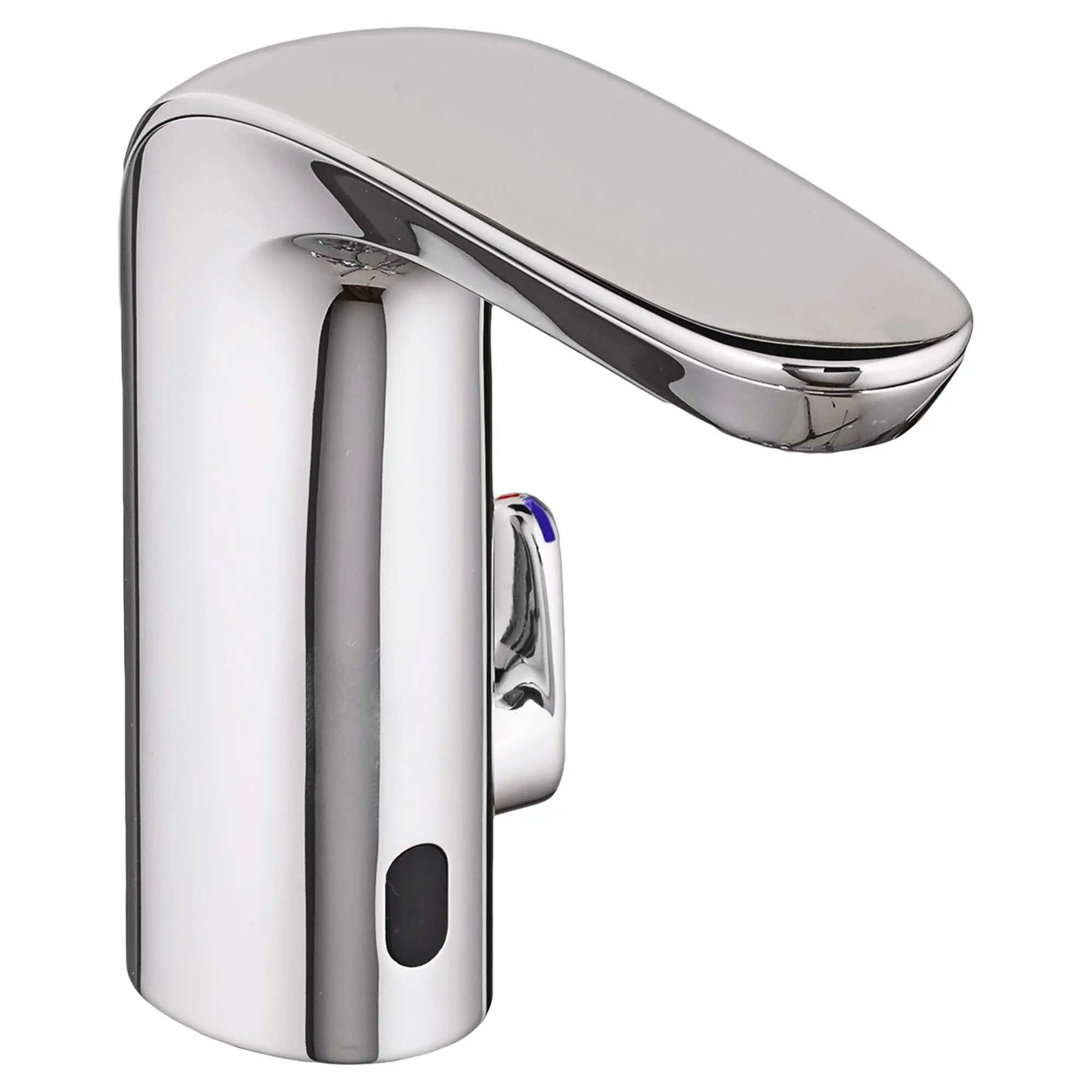

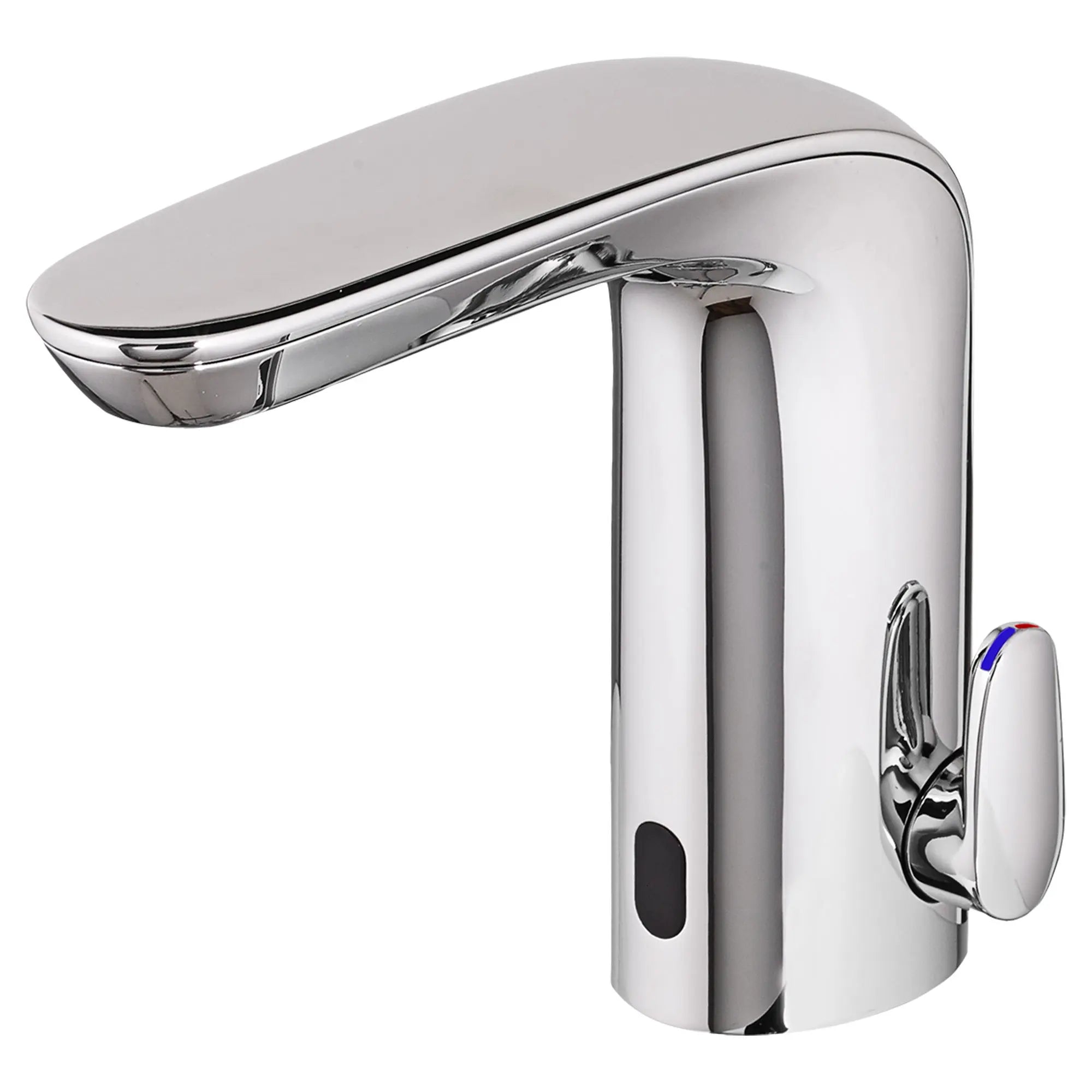

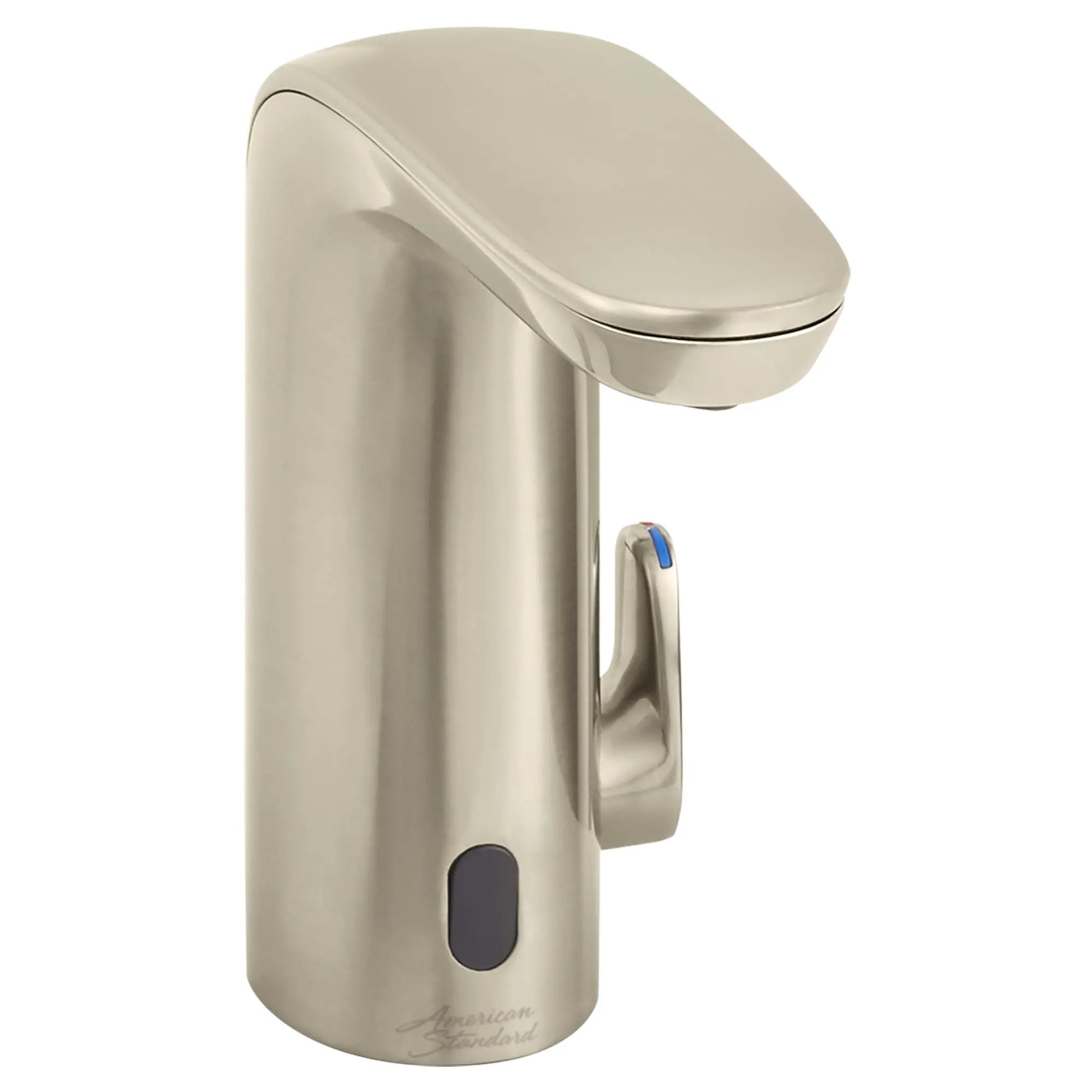

NextGen Selectronic® Touchless Faucet, Battery-Powered With SmarTherm Safety Shut-Off + ADM, 1.5 gpm/5.7 Lpm

NextGen Selectronic® Touchless Faucet, Battery-Powered With SmarTherm Safety Shut-Off + ADM, 1.5 gpm/5.7 Lpm

7755315.002

  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
Finish: Polished Chrome
View full details
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Vandal-resistant 1.5 gpm/5.7 Lpm pressure-compensating laminar flow outlet
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
This exclusive American Standard SmarTherm™ Safety Shut-Off is an innovative technology which integrates a thermostatic hot water temperature limiter into the faucet. SmarTherm™ is ASSE 1070 certified and automatically protects the user from scalding in case of a hot water surge or interruption to the cold water. This exceptional technology eliminates the need for a separate TMV to ensure ASSE 1070 protection. This NextGen Selectronic Commercial Faucet from American Standard also includes an above-deck mixing handle, which allows each user to adjust the water temperature to fit their needs. This faucet features clean lines and a sleek design for an elevated style in the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box.
Resource
Spec Sheet Installation Guide Repair Parts Diagram
Style Specifications
Features Touchless, Touchless, Scald Guard, Ceramic Disk Valves, Low Flow, Water Efficient
Technical Specifications
Fitting Connection Size 9.52 mm
Fitting Handle Type Electronic
Fitting Material Metal
Fitting Max Deck Thickness 38.10 mm
Fitting Swivel Degrees 0 °
Flow Rate 1.5 GPM
Other Specs
Warranty 5 Year Limited Warranty
Batteries Included Yes
Batteries Required Yes
Battery Weight Lithium
Download Spec Sheets
Installation Guide
