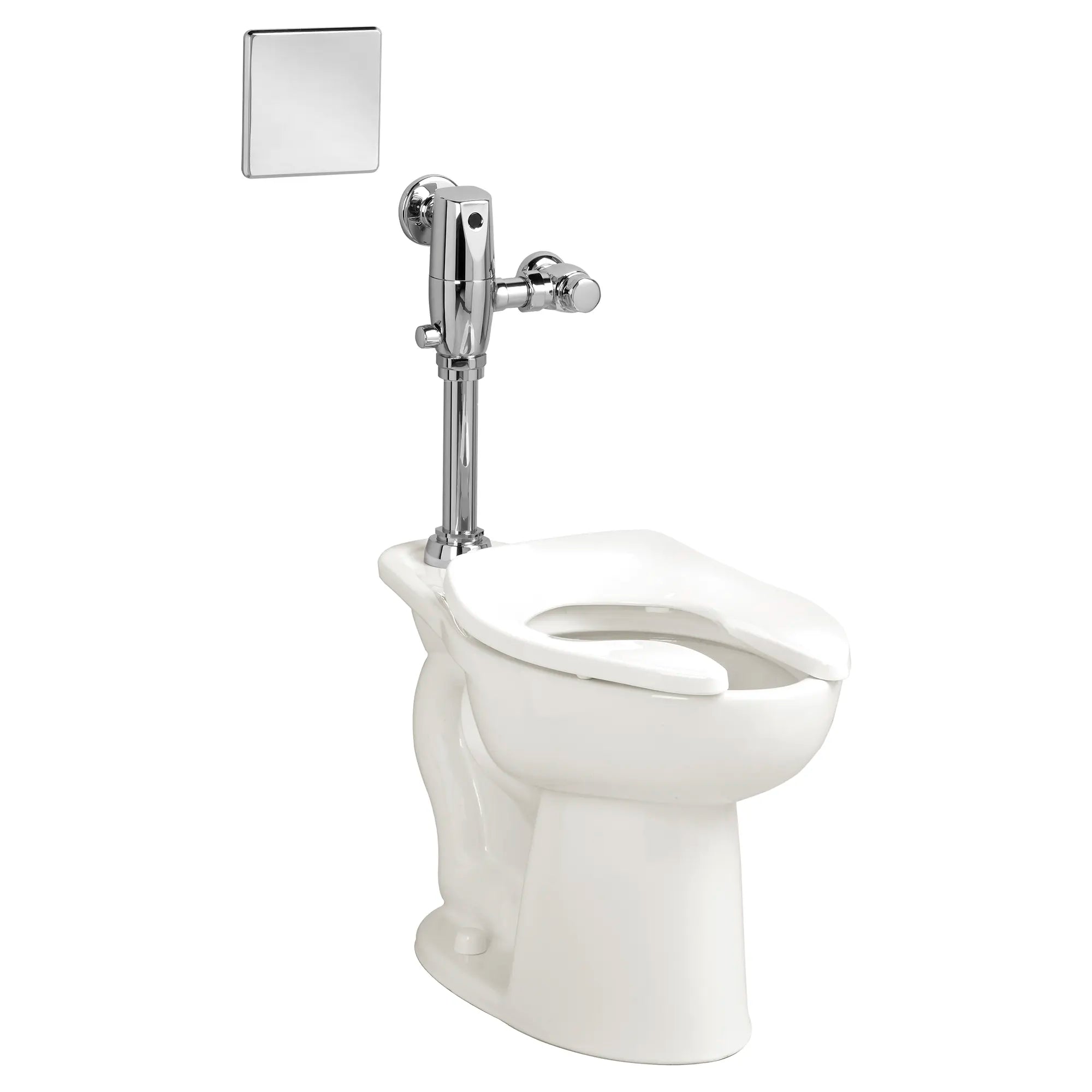

Madera 1.0 – 1.6 gpf (3.8 – 6.0 Lpf) Chair Height Top Spud Elongated EverClean® Bowl Less Seat

Model: 3461001.020

Flush volume range: For 1.0 gpf-1.6 gpf/3.8 Lpf-6.0 Lpf valves
EverClean® surface: Inhibits growth of bacteria, mold and mildew
Top-spud bowl only: Seat and valve sold separately

Finish: White

View full details

Compatibility: Works with the American Standard Ultima Selectronic Exposed Toilet Flush Valve 1.0 gpf-1.6 gpf/3.8 Lpf-6.0 Lpf, sold separately
Highest Maximum Performance (MaP) score: Achieves highest score of 1,000 grams when combined with 1.1 – 1.6 gpf
achieves impressive score of 800 grams when combined with 1.0 gpf
Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
Powerful flush: Direct-fed siphon jet flush action
Chair height: 16 ½” (419 mm) rim height enhances accessibility and comfort when sitting and standing
Fully glazed trapway: 2-1/8" (54 mm)
2" (51 mm) minimum ballpass
Inlet spud: 1-1/2" (38 mm)
Rough-in: Available in 10" (254 mm) or 12" (305 mm)

The Madera Elongated Floor-Mount Toilet from American Standard withstands the rigors of constant use while ensuring a powerful flush at a lower flush volume to conserve water when combined with the Ultima Selectronic Flush Valve. This chair-height toilet enhances comfort and accessibility, and features EverClean® antimicrobial surface to protect against mold, mildew, odor- and stain-causing bacteria.

Resource

Spec Sheet Installation Guide

Style Specifications

Item Shape	Bowl Shape: Elongated
Toilet Type	Floor_Standing_Toilet_Bowl

Technical Specifications

Flush Technology	Flushometer
Flushing Type	Not Applicable
GPF Maximum	1.6 gpf
GPF Minimum	1.1 gpf
Toilet Trapway Diameter	53.97 mm
Toilet Type	Floor_Standing_Toilet_Bowl
Bidet Spray Type	Yes
Everclean	Yes
MAP Performance Rating	1000
