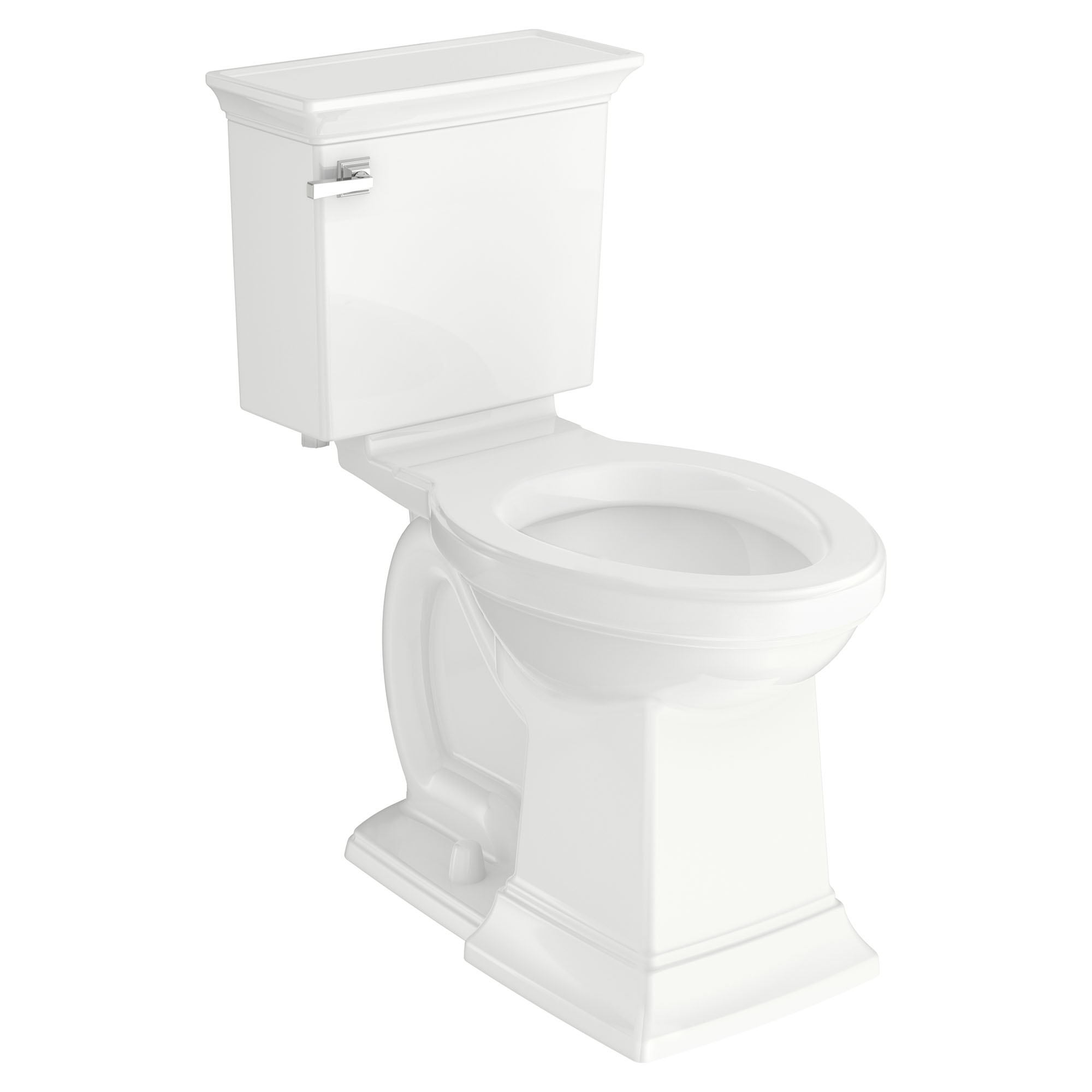

Town Square® S Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet Less Seat

List Price:

List Price:

Model: 2917228.020

View in Scene
link
  • HET single flush configuration with left hand trip lever
  • High efficiency - Full Flush (1.28 gpf/4.8 Lpf)
  • Combination Right Height elongated bowl and left hand trip lever tank, less seat
Finish: White
  • White
  • Linen

Product Description

The Town Square S Right Height Elongated Toilet by American Standard introduces a sense of classic architecture. This stately design features elegant details inspired by crown molding that coordinate perfectly with the rest of the Town Square S collection. A flow rate of 1.28 gallons per flush (gpf) helps to save water with this luxury performance toilet. The Right Height® design provides a taller bowl, for a more comfortable experience. An EverClean® surface, which includes antimicrobial properties, inhibits the growth of stain and odor-causing bacteria, mold, and mildew on the surface, while a PowerWash® rim scrubs the bowl with each flush.

Town Square® S Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet Less Seat

Town Square

Town Square® S Two-Piece 1.28 gpf/4.8 Lpf Chair Height Elongated Toilet Less Seat

Features

  • Combination Right Height elongated bowl and left hand trip lever tank, less seat
  • HET single flush configuration with left hand trip lever
  • High efficiency - Full Flush (1.28 gpf/4.8 Lpf)
  • 12" rough, 16-1/2" (419 mm) rim height bowl with fully glazed 2-1/8" (54 mm) Trapway
  • Best 1,000g MaP flush and WaterSense® listed
  • Includes EverClean® antimicrobial surface
  • PowerWash® rim scrubs bowl with each flush
  • Generous 9" x 8" (229 x 203 mm) water surface area
  • Tank supplied with chrome finish trip lever
  • 10 year limited warranty

Innovations

ada

ADA Compliant

Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.

CALGreen

CEC Certified

Meets California Energy Commission requirements.

water efficient

Water Efficient

WaterSense

WaterSense® Certified. Meets all ANSI/ASME low consumption, water conservation requirements.

Specifications

  • Style Specifications
    Features Water Efficient
    Warranty 10 Year Limited Warranty
  • Technical Specifications
    Flulsh Valve Size 76.20
    Technologie Flush Gravity Fed
    Flushing Type Single Flush
    Toilet Bowl Height with Seat 431.80
    Toilet Trapway Diameter 53.97
    No. of Flush Valves 1

CAD Files

Traditional Slow-Close & Easy Lift-Off Elongated Toilet Seat

Traditional Slow-Close & Easy Lift-Off Elongated Toilet Seat

 Model Number: 5020A65G.020 EAN : 791556105362

Finish:WHITE
