Studio S

Studio® S 8-Inch Widespread 2-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handles

List Price:

List Price:

Model: 7105801.002

View in Scene
link

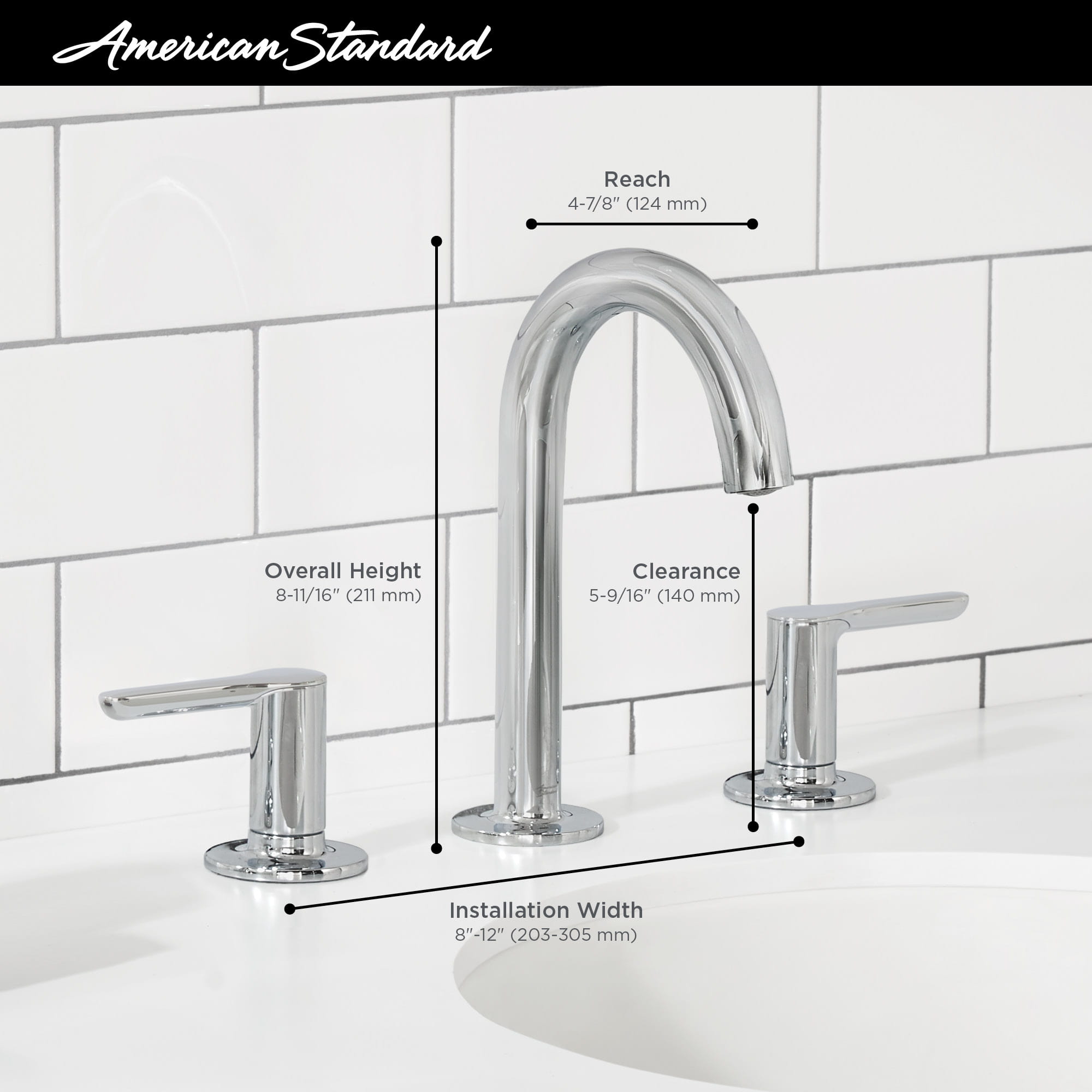

  • Easy installation system includes cast brass valve bodies with integral flexible hose connections for 6"-12" (152 - 305 mm) installations
  • Brass spout for a durable and long-lasting design
Finish: Polished Chrome123456
  • Matte Black
  • Brushed Nickel
  • Polished Chrome123456

Product Description

The sleek geometric design and soft edges of the Studio S Widespread Bathroom Faucet provides a metropolitan update for modern bathrooms. Engineered with ceramic disc valves, the handles operate smoothly with drip-free performance. The WaterSense certified faucet provides up to 32% water-savings when compared to standard faucets and is CEC listed. Features  Brass spout for a durable and long-lasting design Metal lever handles Performance  WaterSense listed  flow rate of 1.2 gallons per minute (1.2 gpm/4.5 L/min) saves water without sacrificing performance Specs Pre-assembled brass valve bodies with flexible hose connections for easy 6"-12" (152 - 305 mm) installations 1/4 turn washerless ceramic disc valve cartridges Braided flexible supply hoses with 3/8" (10 mm) compression connectors Metal Speed Connect® pop-up drain uses fewer parts and installs in less time Sustainability CEC Listed CALGreen Compliant

3kj69y074qfzv2vgsb9tw1a4tvujrddp

Studio S

Studio® S 8-Inch Widespread 2-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handles

Features

  • Easy installation system includes cast brass valve bodies with integral flexible hose connections for 6"-12" (152 - 305 mm) installations
  • Brass spout for a durable and long-lasting design
  • Metal lever handles
  • WaterSense Certified - Water-saving maximum flow rate of 1.2 gallons per minute (1.2 gpm/4.5 L/min) without sacrificing performance
  • Metal Speed Connect® pop-up drain uses fewer parts and installs in less time

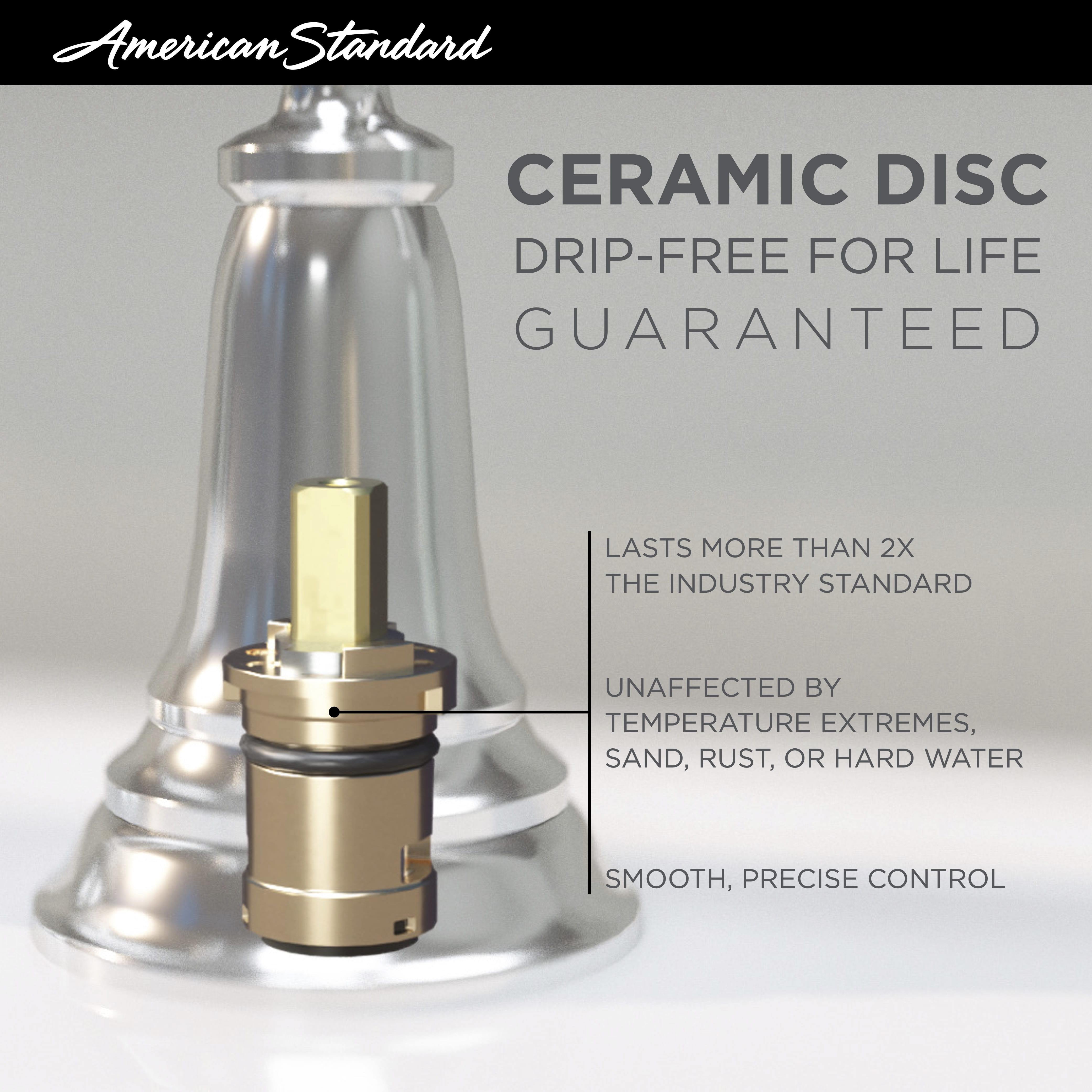

  • 1/4 turn washerless ceramic disc valve cartridges
  • Integrated, color-coded flexible braided stainless steel supply hoses with 3/8" (10 mm) compression connectors
  • Limited Lifetime Warrany on function and finish

Innovations

ada

ADA Compliant

Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.

CALGreen

CEC Certified

Meets California Energy Commission requirements.

water efficient

Water Efficient

WaterSense

WaterSense® Certified. Meets all ANSI/ASME low consumption, water conservation requirements.

Specifications

  • Style Specifications
    Features Not Applicable,Water Efficient
    Fitting Handle Material Metal
    Fitting Handle Type Lever
  • Technical Specifications
    Fitting Connection Size 9.52
    Fitting Handle Height 66.67
    Fitting Handle Type Lever
    Fitting Material Brass
    Fitting Max Deck Thickness 31.75
    Fitting Max Deck Thickness with Escutcheon 50.80
    Fitting Speed Connect Fitting Speed Connect
    Fitting Spout Reach 123.82
    Fitting Valve Material Ceramic
  • Other Specs
    Warranty Limited Lifetime Warranty
    Battery Weight Not Applicable

Parts for this product

Following are the list of products or parts which you can also add to your list along with the product, you can also download the parts diagram by clicking on the Download Repair Parts Diagram button
