Delancey

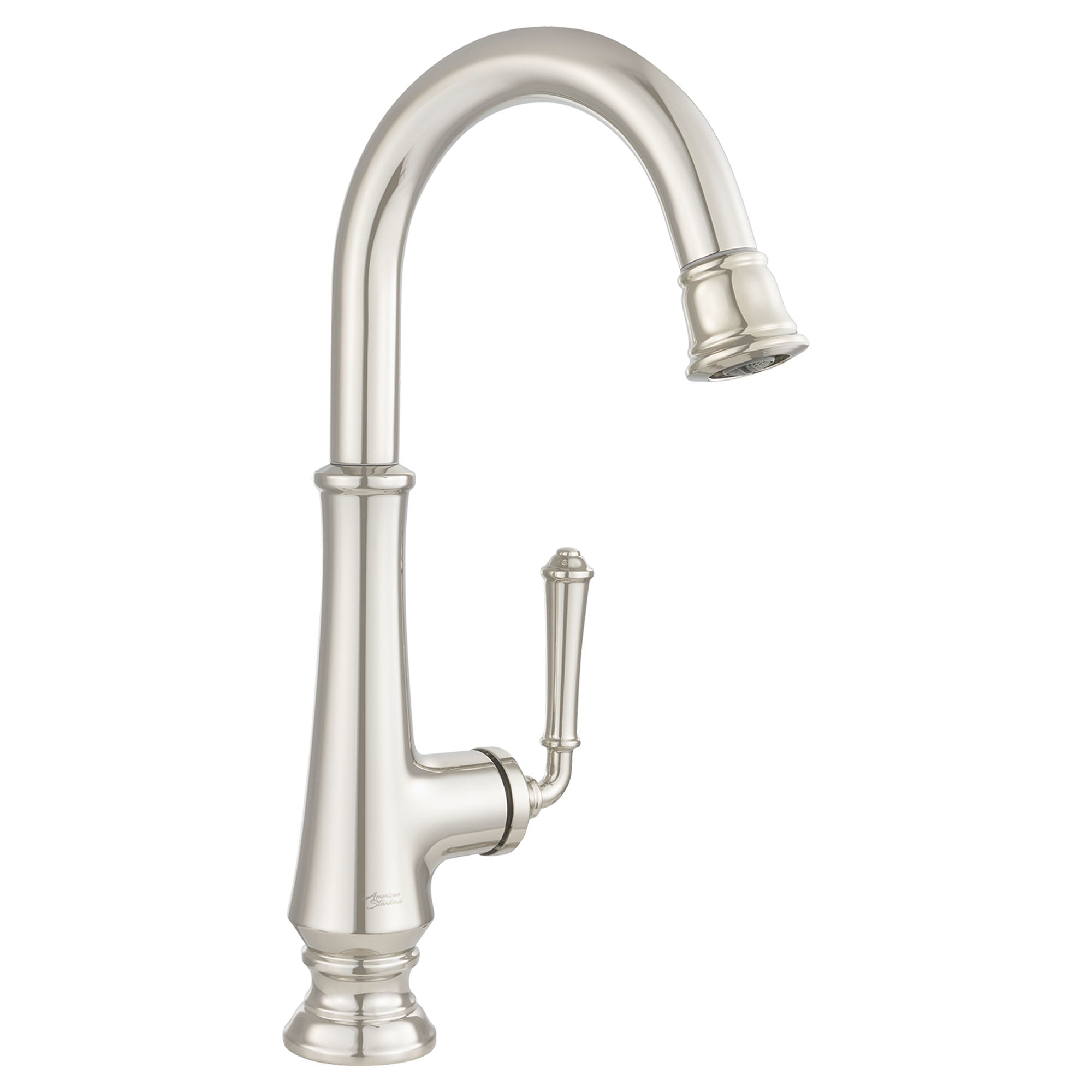

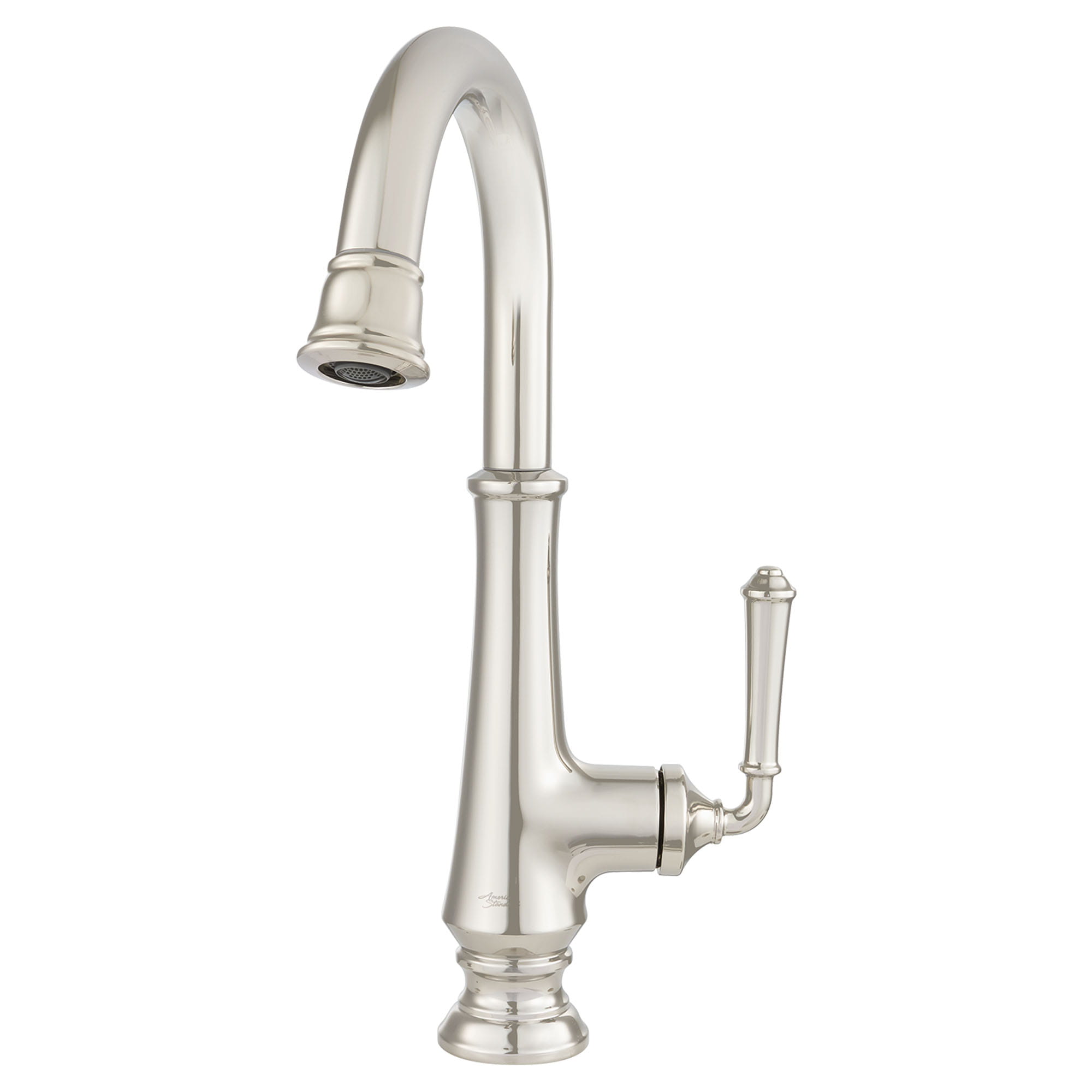

Delancey® Single-Handle Pull-Down Bar Faucet 1.5 gpm/5.7 L/min
List Price:
List Price:
- Durable brass construction
- ADA compliant metal lever handle
- Drip-free performance with high quality ceramic disc valve
Finish:
Polished Nickel PVD
Product Description
Delancey
Delancey® Single-Handle Pull-Down Bar Faucet 1.5 gpm/5.7 L/min
Features
- Durable brass construction
- ADA Compliant metal lever handle

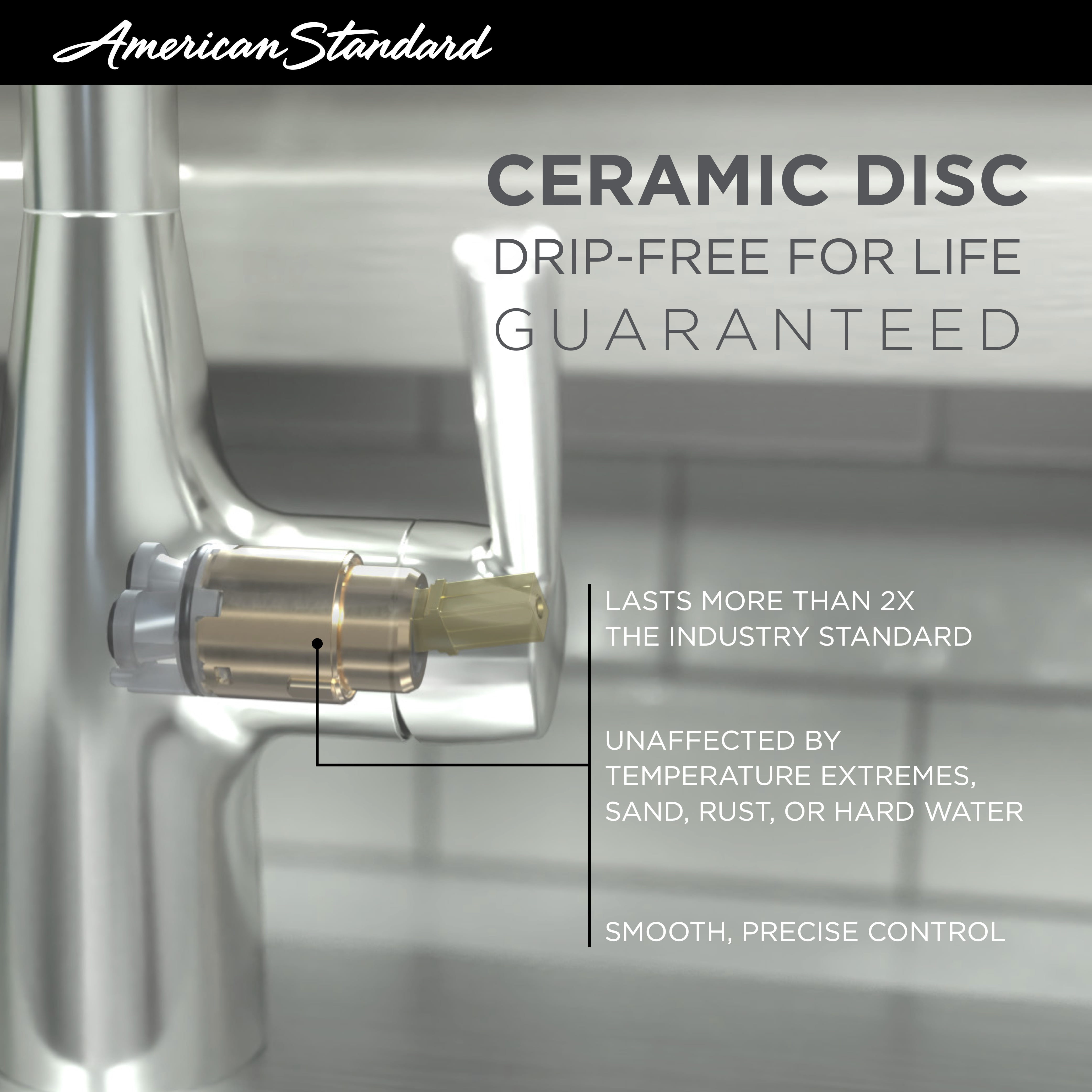

- Ceramic disc valve cartridge for a lifetime of drip-free performance
- Lead-free construction
- Limited lifetime warranty on function and finish
- Flow rate of 1.5 gpm helps to save water
Innovations
ADA Compliant
Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.
CALGreen
CEC Certified
Meets California Energy Commission requirements.
Water Efficient
Specifications
-
Style Specifications
Color/Finish POLISHED NICKEL Faucet Type Pull Down Features Not Applicable,Pull Down,Water Efficient Fitting Material Zinc -
Technical Specifications
Dimensions 15,3.234,8.6,5.3 Fitting Connection Size 9.52 Fitting Handle Height 7.2 Fitting Hose Length 37.9 Fitting Max Deck Thickness 50.80 Fitting Spout Reach 6.7 Fitting Swivel Degrees 360 Fitting Valve Material Ceramic Battery Weight Not Applicable -
Other Specs
Warranty Limited Lifetime Warranty Battery Weight Not Applicable
CAD Files
Parts for this product
Following are the list of products or parts which you can also add to your list along with the product, you can also download the parts diagram by clicking on the Download Repair Parts Diagram button
