Portsmouth

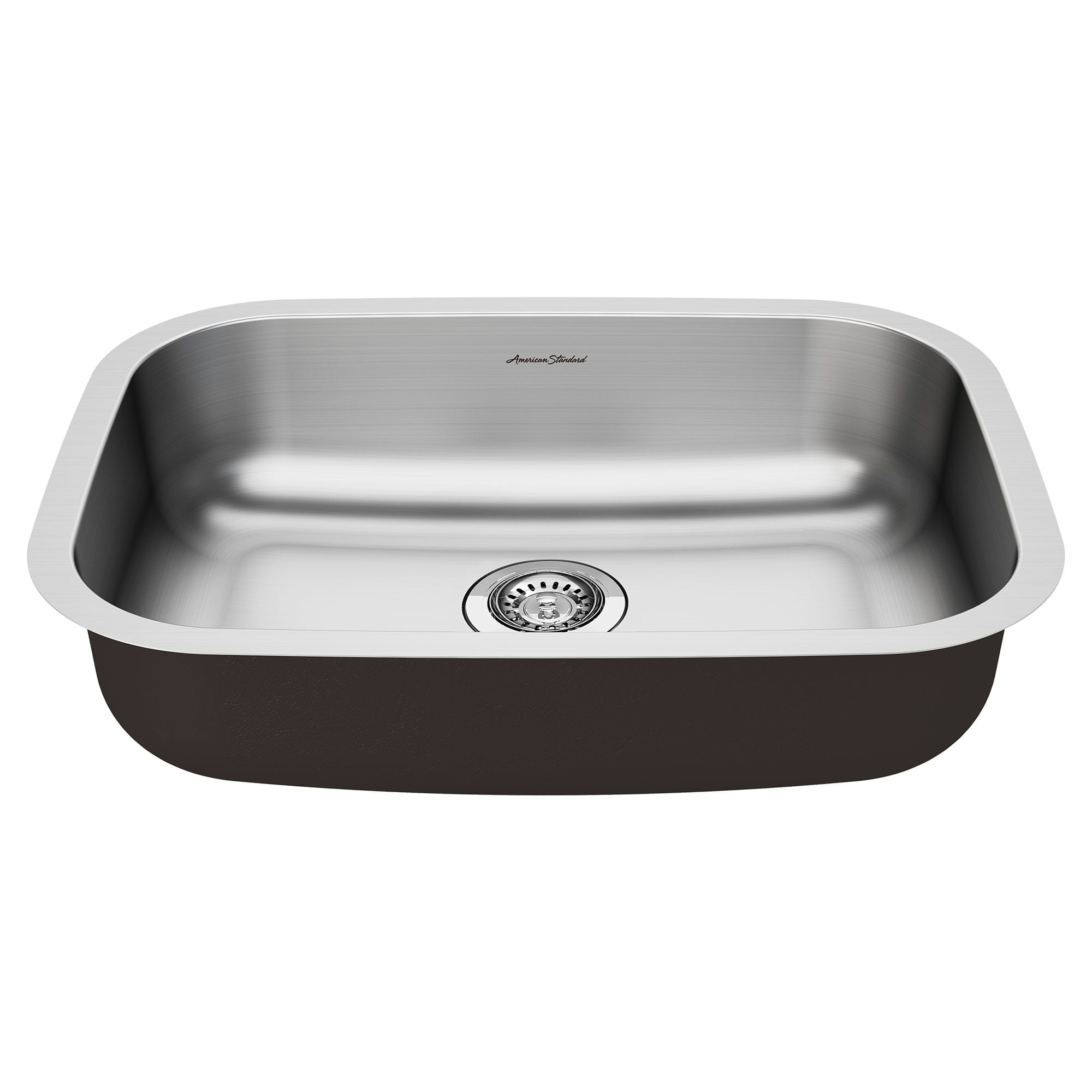

Portsmouth® 23 x 18-Inch Stainless Steel Undermount Single-Bowl ADA Kitchen Sink
List Price:
List Price:
- Single-bowl stainless steel kitchen sink
- 18-gauge stainless steel
- Undermount installation
Finish:
Stainless Steel
Product Description
Portsmouth
Portsmouth® 23 x 18-Inch Stainless Steel Undermount Single-Bowl ADA Kitchen Sink

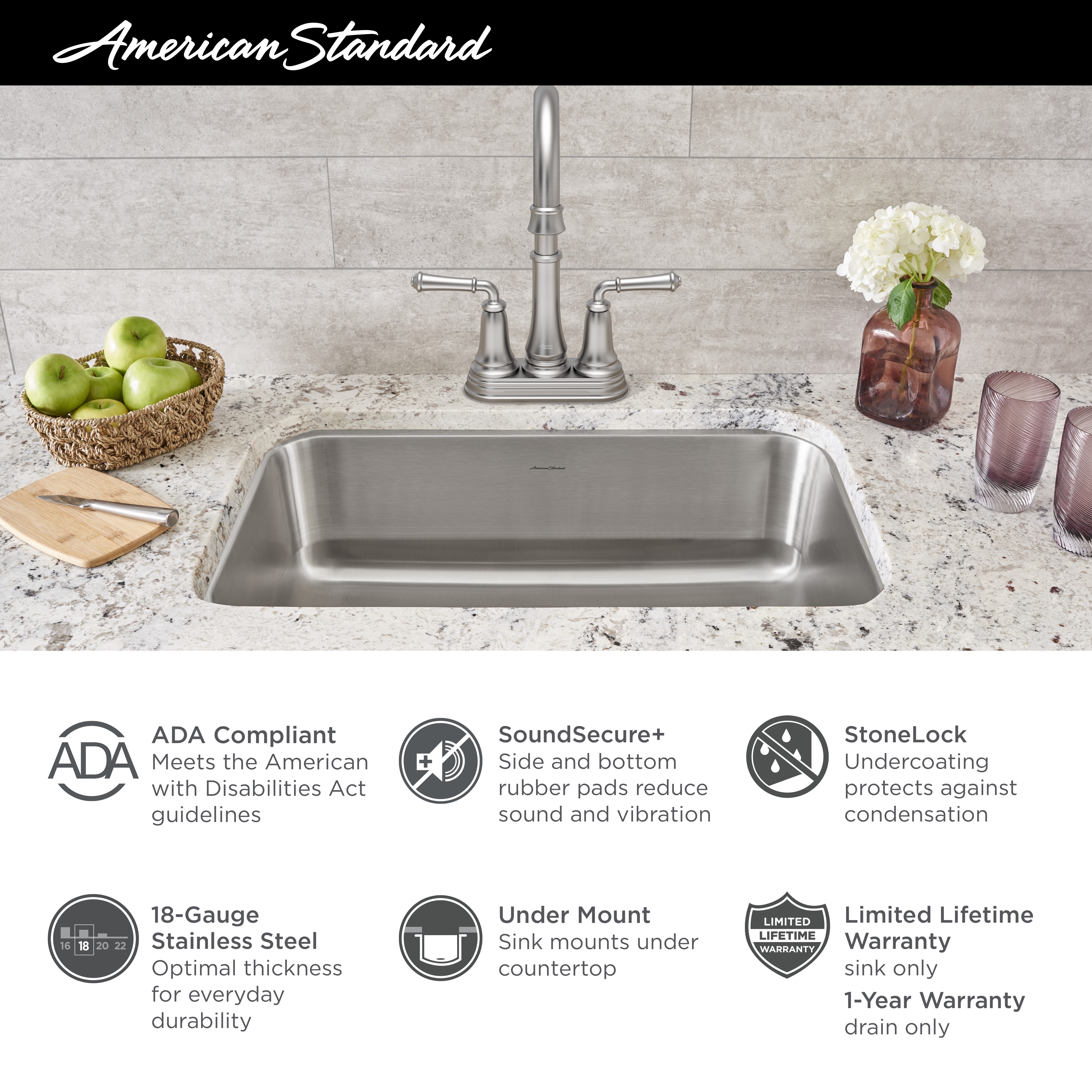

Features
- Single-bowl stainless steel kitchen sink
- 18-gauge stainless steel
- 6" depth with offset drain
- Undermount installation
- 26" (660 mm) cabinet required
- Includes: - 9028000.075 Waste Fitting - 791676-100.0070A Undermount Sink Clips
- Features SoundSecure+ sound pads
- Features StoneLock undercoating
- Cutout template and instructions included

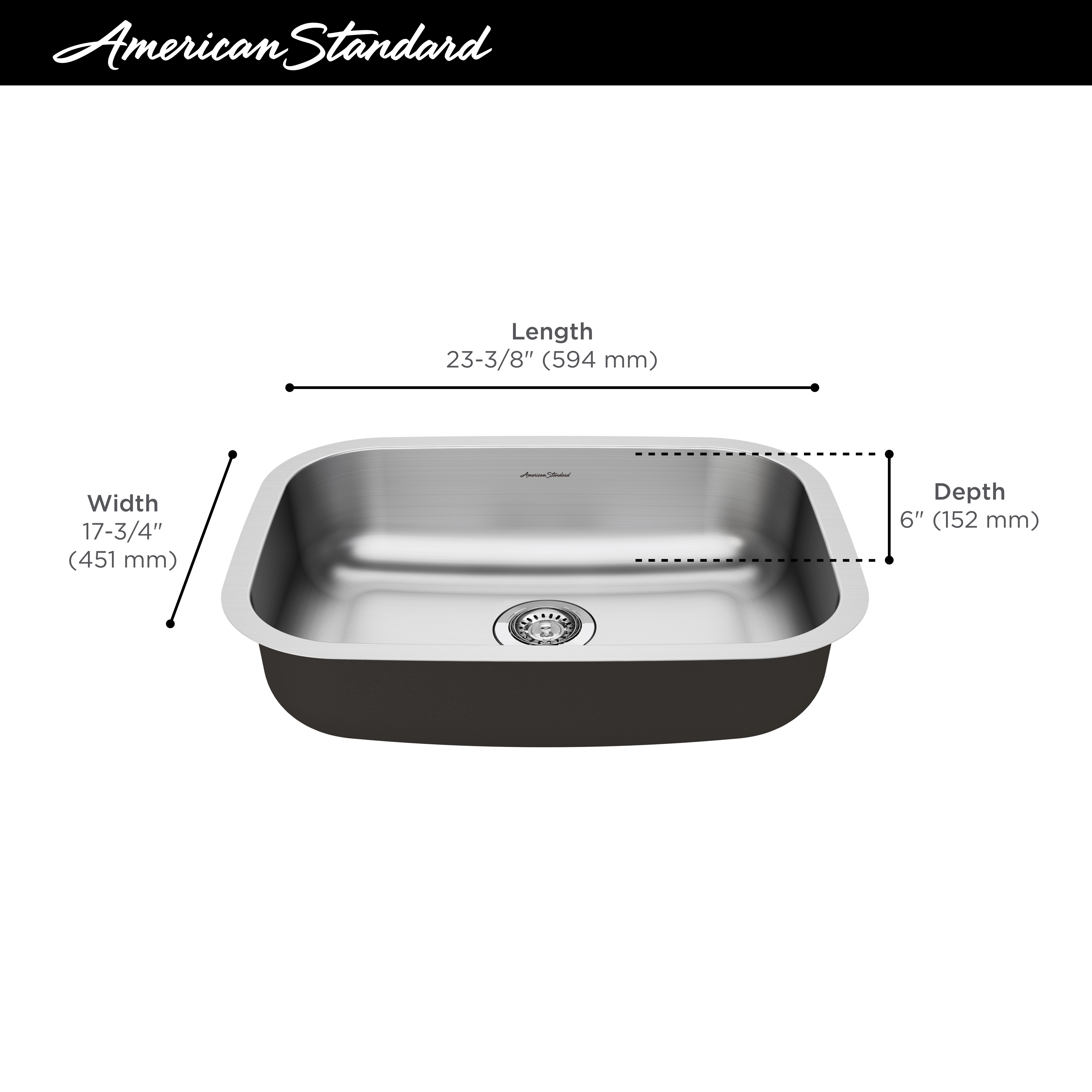

- Nominal Dimensions: 23-3/8" x 17-3/4" x 6" (594 x 451 x 152 mm)
- Bowl Size: 21-7/16" (544 mm) wide 15-13/16" (401 mm) front to back 6" (152 mm) deep
Innovations
ADA Compliant
Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.
Specifications
-
Style Specifications
Color/Finish STAINLESS STL -
Technical Specifications
Dimensions 152.40,4.09,450.85,593.73 Sink Below Counter Depth 152.40 Sink Cut-Out Below Counter Depth 152 Sink Front to Back Width 450.85 Sink Left to Right Length 593.73 Sink Top to Bottom Depth 152 -
Other Specs
Battery Weight Not Applicable
Installation
Contact American Standard
LIXIL Canada Inc.
5900 Avebury Road
Mississauga, Ontario
Canada L5R 3M3
Toll-Free: 1-855-836-9615
