Selectronic

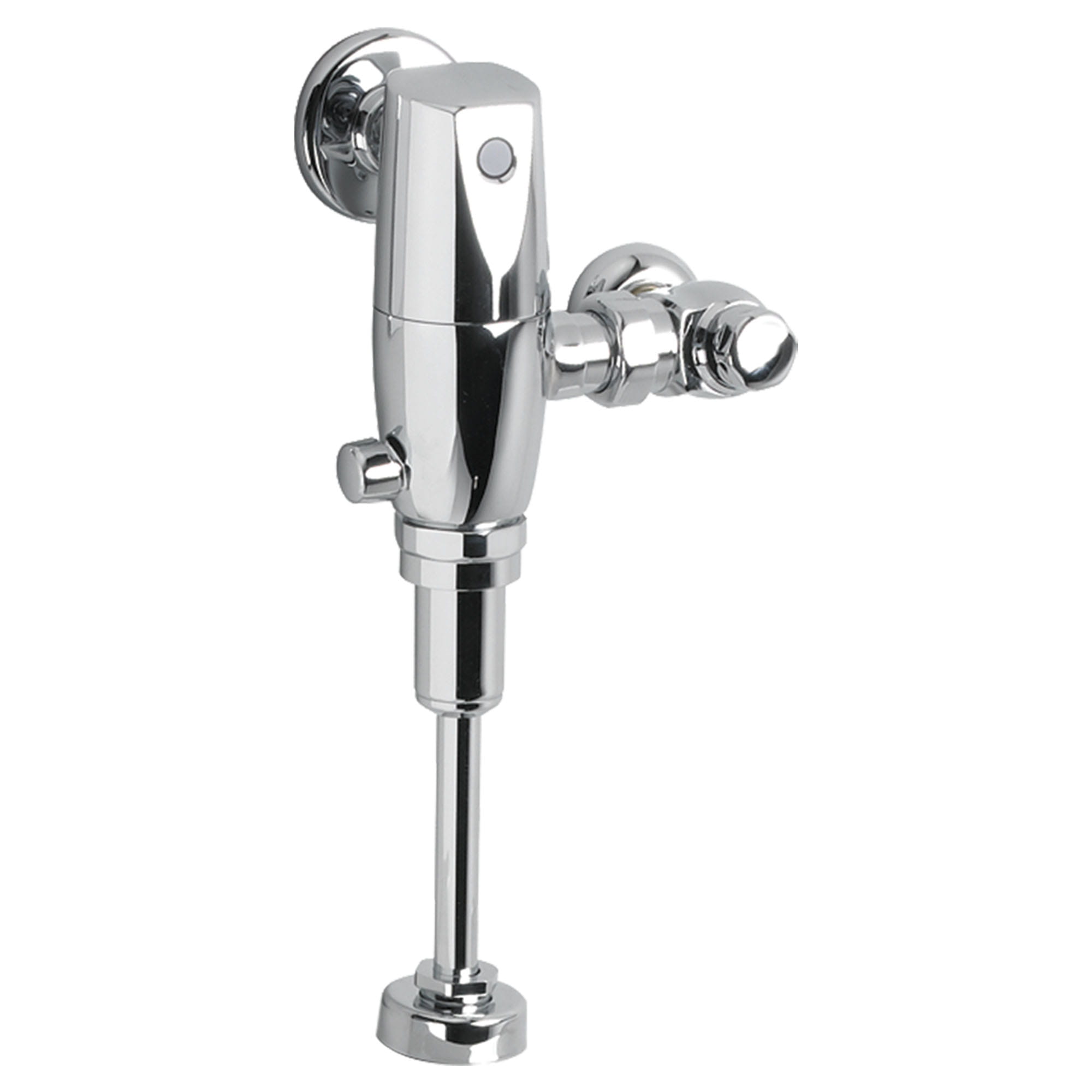

Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Base Model, 0.5 gpf/1.9 Lpf

List Price:

List Price:

Model: 606B051.002

View in Scene
link
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • For urinals with 3/4-inch (19 mm) exposed top spud
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
Show More
Finish: Polished Chrome
  • Polished Chrome

Product Description

The Selectronic® Exposed AC Urinal Flush Valve features a self-cleaning piston design that saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs. The Selectronic urinal flush valves include a pressure compensation feature that maintains the proper flush volume regardless of inlet water pressure.Features

Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Base Model, 0.5 gpf/1.9 Lpf

Selectronic

Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Base Model, 0.5 gpf/1.9 Lpf

Features

  • POWER KIT MUST BE PURCHASED SEPARATELY
  • For urinals with 3/4-inch (19 mm) exposed top spud
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in

Innovations

ada

ADA Compliant

Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.

water efficient

Water Efficient

WaterSense

WaterSense® Certified. Meets all ANSI/ASME low consumption, water conservation requirements.

Specifications

CAD Files

Parts for this product

Following are the list of products or parts which you can also add to your list along with the product, you can also download the parts diagram by clicking on the Download Repair Parts Diagram button

Not seeing what you need?

Selectronic™ Multi-AC Power Kit

Selectronic™ Multi-AC Power Kit

 Model Number: PK00.MAC EAN : 012611588334

Finish:NO FINISH

Installation
