Selectronic

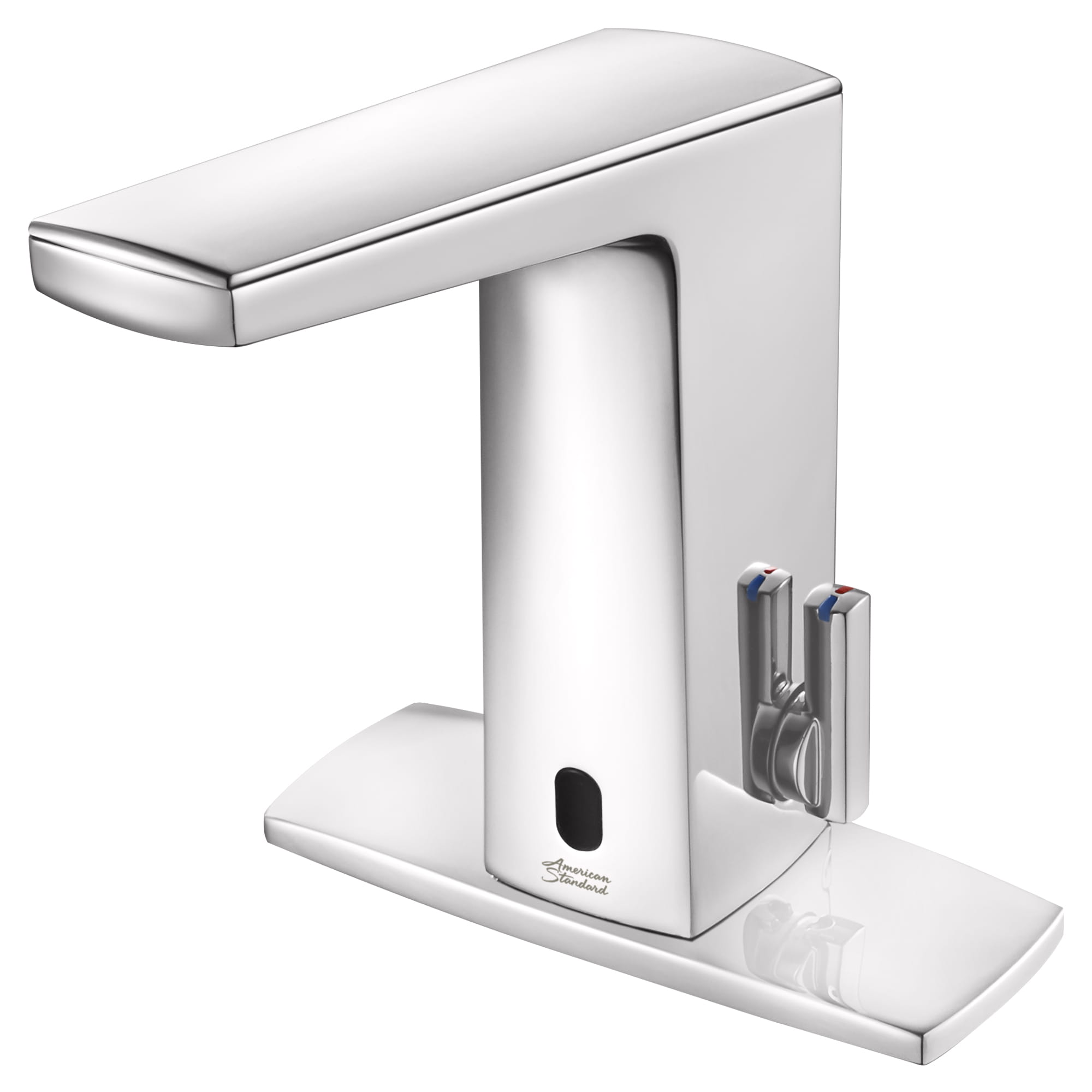

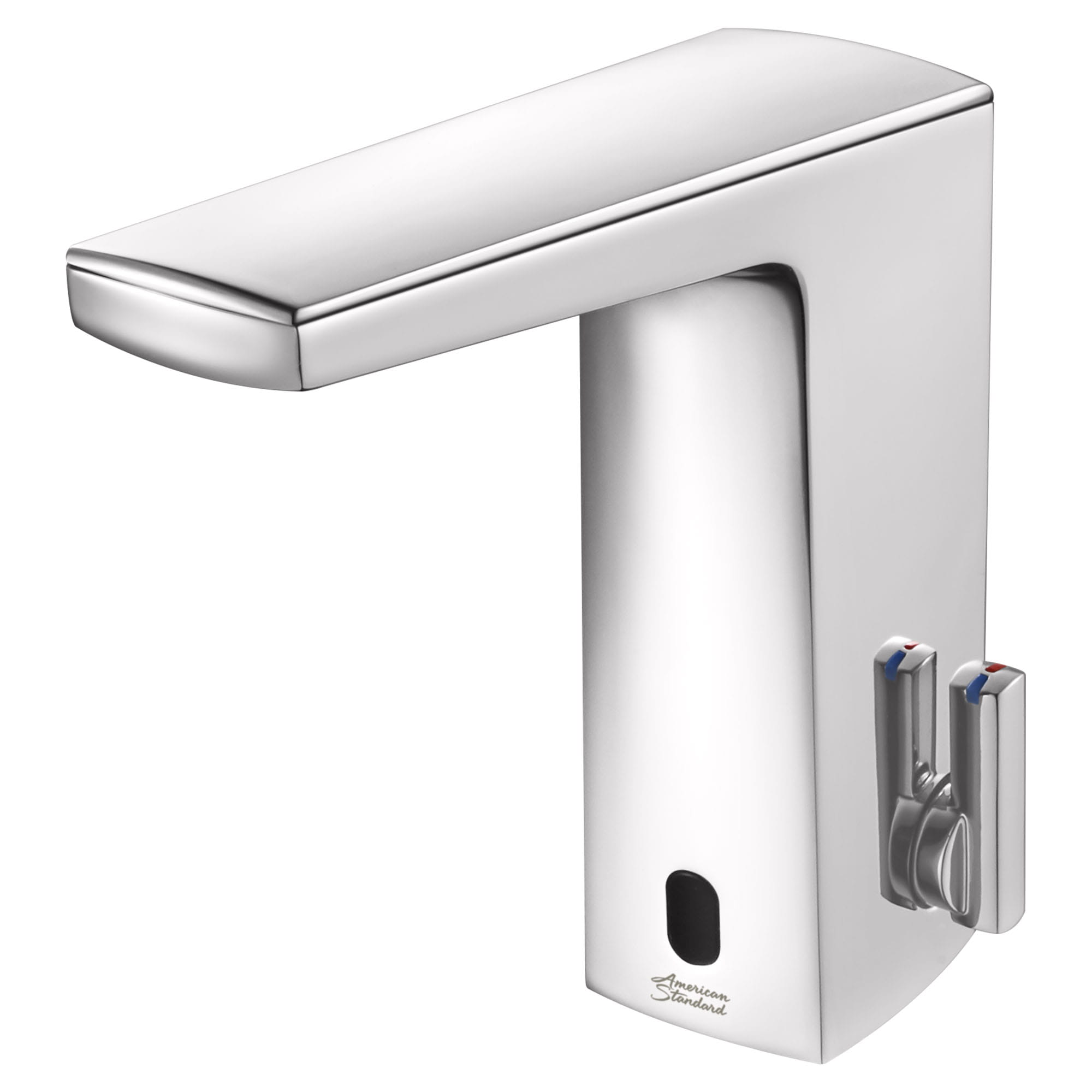

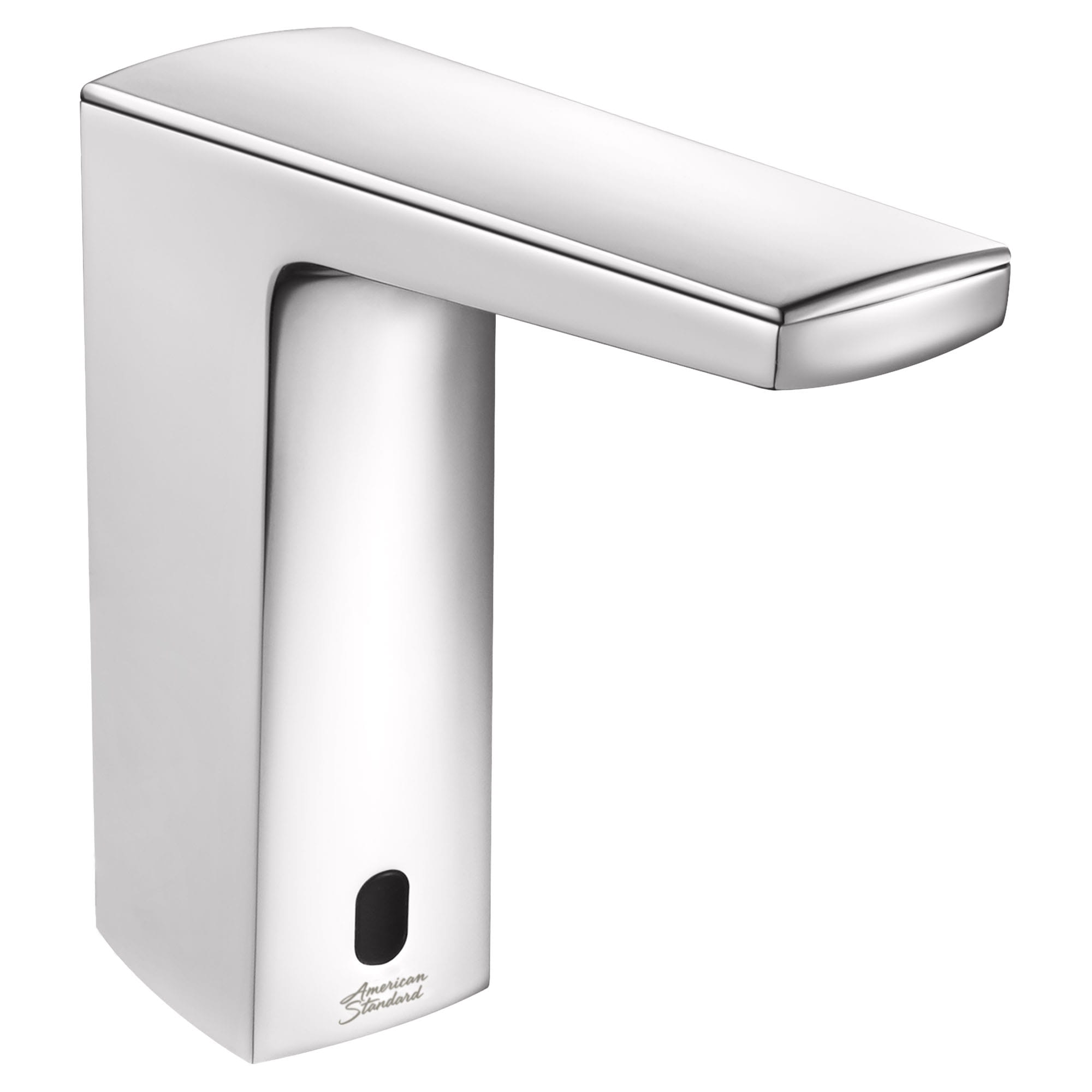

Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.5 gpm/1.9 Lpm

List Price:

List Price:

Model: 702B305.002

View in Scene
link
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
Finish: Polished Chrome
  • Polished Chrome

Product Description

Sleek and streamlined, the Paradigm Selectronic Integrated Faucet from American Standard takes a cue from modern design. It features the patented SmarTherm® Safety-Shut Off which is ASSE 1070 certified and automatically protects the user from scalding. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter-free under-deck space. Available in Chrome and Brushed Nickel.

Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.5 gpm/1.9 Lpm

Selectronic

Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.5 gpm/1.9 Lpm

Features

  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available

Innovations

ada

ADA Compliant

Meets the Americans with Disabilities Act guidelines and ANSI A117.1 requirements for accessible and usable building facilities - check local codes.

CALGreen

CEC Certified

Meets California Energy Commission requirements.

water efficient

Water Efficient

Specifications

  • Style Specifications
    Features Touchless,Water Efficient
    Fitting Material Metal
  • Technical Specifications
    Fitting Spout Reach 139.98
  • Other Specs
    Warranty 5 Year Limited Warranty
    Battery Weight Not Applicable
